MPDTH05010WAH vs MPDTH05010YAH

This detailed comparison of MPDTH05010WAH and MPDTH05010YAH in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

MPDTH05010WAH

Murata Power Solutions

Request For Quote

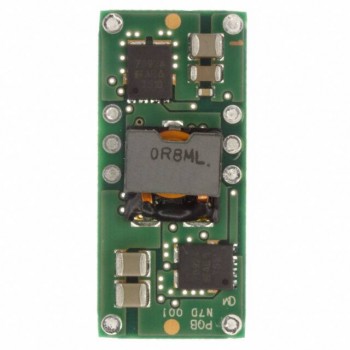

MPDTH05010YAH

Murata Power Solutions

Request For Quote

Specifications Hide identical items

Manufacturer	Murata Power Solutions	Murata Power Solutions
Package / Case	10-DIP Module	10-DIP Module
Description	DC DC CONVERTER 0.8-3.6V 54W	DC DC CONVERTER 0.55-1.8V 27W
In Stock	1 727	1 344
Mounting Type	Through Hole	Through Hole
Part Status	Obsolete	Obsolete
Series	MPD	MPD
Package	Tray	Tray
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Number of Outputs	1	1
Voltage - Input (Min)	4.5V	4.5V
Voltage - Input (Max)	5.5V	5.5V
Voltage - Output 1	0.8 ~ 3.6V	0.55 ~ 1.8V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	15A	15A
Power (Watts)	54 W	27 W
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	-	-
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	95%	88%
Size / Dimension	1.37" L x 0.62" W x 0.35" H (34.8mm x 15.8mm x 9.0mm)	1.37" L x 0.62" W x 0.35" H (34.8mm x 15.8mm x 9.0mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
