MTWA4-24S9 vs MTWA4-24S12

This detailed comparison of MTWA4-24S9 and MTWA4-24S12 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

MTWA4-24S9

Daburn

Request For Quote

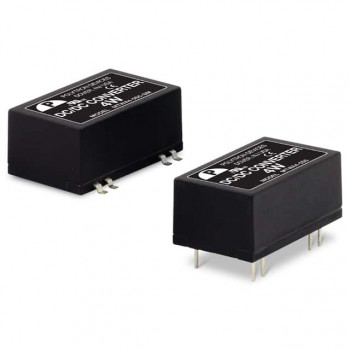

MTWA4-24S12

Daburn

Request For Quote

Specifications Hide identical items

Manufacturer	Daburn	Daburn
Package / Case	16-DIP Module, 7 Leads	16-DIP Module, 7 Leads
Description	DC/DC CONVERTER 4 WATTS MEDICAL	DC/DC CONVERTER 4 WATTS MEDICAL
In Stock	1 286	344
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	MTWA4 (3.5W)	MTWA4 (3.5W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	18V
Voltage - Input (Max)	36V	36V
Voltage - Output 1	9V	12V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	389mA	292mA
Power (Watts)	3.5 W	3.5 W
Voltage - Isolation	5 kV	5 kV
Applications	ITE (Commercial), Medical	ITE (Commercial), Medical
Features	Remote On/Off	Remote On/Off
Operating Temperature	-40°C ~ 105°C (With Derating)	-40°C ~ 105°C (With Derating)
Efficiency	80%	83%
Size / Dimension	0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm)	0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	CB, UL	CB, UL
Standard Number	-	-
