DCM2322T50T5360T60 – Vicor 60W Isolated Module

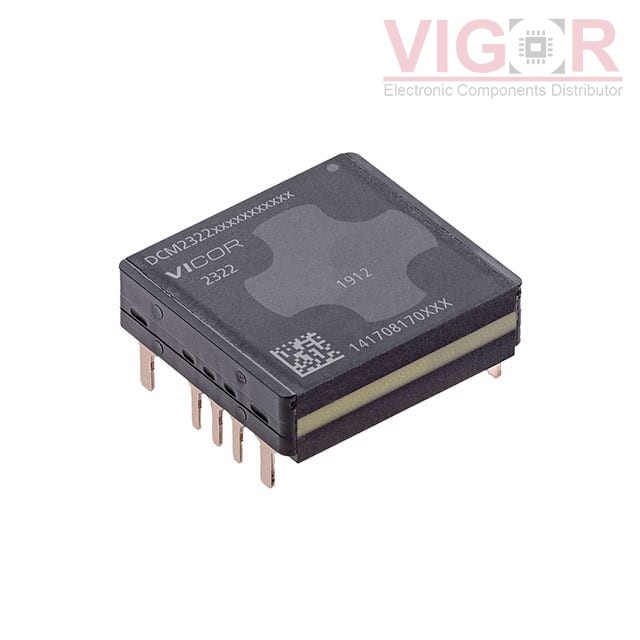

Product image

Part No :: DCM2322T50T5360T60

Manufacturer: Vicor

VIGOR # :: 4122780

Description: DC DC CONVERTER 48V 60W

Catalog: DC DC Converters

DataSheet: DCM2322T50T5360T60 PDF

Country of origin: Confirming

Date code: 24+

ads

Product Description

The DCM2322T50T5360T60 from Vicor is a 60W isolated module in the VI Chip® DCM® family.

It converts a 9V–50V input into a regulated 48V output, delivering up to 1.25A of output current.

Review the complete DCM2322T50T5360T60 specifications below, or request a quote for current stock and lead-time pricing.

DCM2322T50T5360T60 Specifications

Type	Description
Series:	VI Chip® DCM®
Package:	Tray
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	50V
Voltage - Output 1:	48V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.25A
Power (Watts):	60 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	Adjustable Output
Operating Temperature:	-40°C ~ 125°C
Efficiency:	93%
Mounting Type:	Through Hole
Package / Case:	9-DIP Module
Size / Dimension:	0.98" L x 0.90" W x 0.28" H (24.8mm x 22.8mm x 7.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE, cTUVus, cURus
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
DCM3623T75X5380M00 Match 74%	Vicor DC DC CONVERTER 48V 82W	DCM2322T50T5360T60 vs DCM3623T75X5380M00
DCM2322T50T5360M60 Match 100%	Vicor DC DC CONVERTER 48V 60W	DCM2322T50T5360T60 vs DCM2322T50T5360M60
DCM3623T75X5380T00 Match 74%	Vicor DC DC CONVERTER 48V 82W	DCM2322T50T5360T60 vs DCM3623T75X5380T00

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 5

Shipped from

HK warehouse

Expected Shipping Date

In Stock

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$199.5000	$199.50
5	$190.0000	$950.00

Hot Products

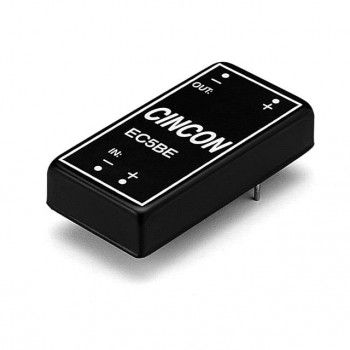

DC DC CONVERTER +/-5V 15W

DC DC CONVERTER +/-9V 2W

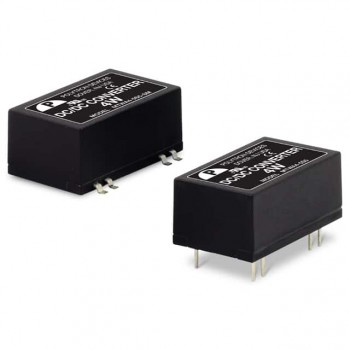

DC/DC CONVERTER 4 WATTS MEDICAL
