NPH10S2415IC vs NPH10S2415EIC

This detailed comparison of NPH10S2415IC and NPH10S2415EIC in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

NPH10S2415IC

Murata Power Solutions

Request For Quote

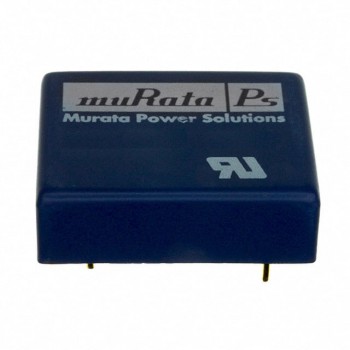

NPH10S2415EIC

Murata Power Solutions

Request For Quote

Specifications Hide identical items

Manufacturer	Murata Power Solutions	Murata Power Solutions
Package / Case	6-DIP Module	6-DIP Module
Description	DC DC CONVERTER 15.1V 10W	DC DC CONVERTER 15.1V 10W
In Stock	257	1 184
Mounting Type	Through Hole	Through Hole
Part Status	Not For New Designs	Not For New Designs
Series	NPH10S (10W)	NPH10S (10W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	18V
Voltage - Input (Max)	36V	36V
Voltage - Output 1	15.1V	15.1V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	670mA	670mA
Power (Watts)	10 W	10 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	-	-
Operating Temperature	-40°C ~ 110°C	-40°C ~ 110°C
Efficiency	86%	86%
Size / Dimension	1.26" L x 0.98" W x 0.39" H (32.0mm x 24.9mm x 9.9mm)	1.26" L x 0.98" W x 0.39" H (32.0mm x 24.9mm x 9.9mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
