PDS2-S12-S5-M-TR vs ISH1205A

This detailed comparison of PDS2-S12-S5-M-TR and ISH1205A in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

PDS2-S12-S5-M-TR

CUI Inc.

Request For Quote

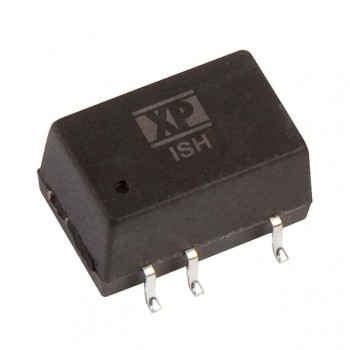

ISH1205A

XP Power

Request For Quote

Specifications Hide identical items

Manufacturer	CUI Inc.	XP Power
Package / Case	8-SMD Module, 5 Leads	8-SMD Module, 5 Leads
Description	DC DC CONVERTER 5V 2W	DC DC CONVERTER 5V 2W
In Stock	349	1 365
Mounting Type	Surface Mount	Surface Mount
Part Status	Active	Active
Series	PDS2-M (2W)	ISH (2W)
Package	Tape & Reel (TR)Cut Tape (CT)Digi-Reel®	Tape & Reel (TR)Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	10.8V	10.8V
Voltage - Input (Max)	13.2V	13.2V
Voltage - Output 1	5V	5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	400mA	400mA
Power (Watts)	2 W	2 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	SCP	SCP
Operating Temperature	-40°C ~ 105°C (With Derating)	-40°C ~ 105°C
Efficiency	79%	79%
Size / Dimension	0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm)	0.50" L x 0.44" W x 0.29" H (12.7mm x 11.2mm x 7.3mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	EN	-
Standard Number	55024; 55032 Class A	-
