PT4127C vs PT4126C

This detailed comparison of PT4127C and PT4126C in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

PT4127C

Texas Instruments

Request For Quote

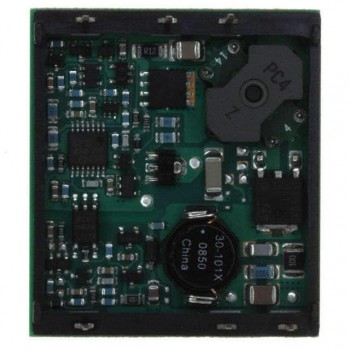

PT4126C

Texas Instruments

Request For Quote

Specifications Hide identical items

Manufacturer	Texas Instruments	Texas Instruments
Package / Case	6-SMD Module	6-SMD Module
Description	DC DC CONVERTER 1.8V 20W	DC DC CONVERTER 1.5V 20W
In Stock	1 624	1 873
Mounting Type	Surface Mount	Surface Mount
Part Status	Obsolete	Obsolete
Series	PT4120 (20W)	PT4120 (20W)
Package	Tray	Tray
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	36V	36V
Voltage - Input (Max)	75V	75V
Voltage - Output 1	1.8V	1.5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	5A	5A
Power (Watts)	20 W	20 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OTP, SCP, UVLO	Remote On/Off, OTP, SCP, UVLO
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	67%	67%
Size / Dimension	1.67" L x 1.48" W x 0.34" H (42.4mm x 37.6mm x 8.6mm)	1.73" L x 1.52" W x 0.33" H (43.9mm x 38.6mm x 8.5mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
