PT78NR109H vs PT78NR108H

This detailed comparison of PT78NR109H and PT78NR108H in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

PT78NR109H

Texas Instruments

Request For Quote

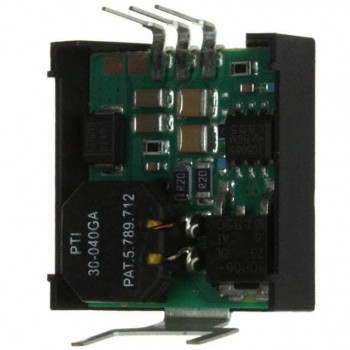

PT78NR108H

Texas Instruments

Request For Quote

Specifications Hide identical items

Manufacturer	Texas Instruments	Texas Instruments
Package / Case	3-SIP Module	3-SIP Module
Description	DC DC CONVERTER -9V	DC DC CONVERTER -8V
In Stock	1 497	632
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Part Status	Obsolete	Obsolete
Series	PT78NR100	PT78NR100
Package	Tray	Tray
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Number of Outputs	1	1
Voltage - Input (Min)	7V	7V
Voltage - Input (Max)	21V	21V
Voltage - Output 1	-9V	-8V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	550mA	550mA
Power (Watts)	-	-
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	OTP, SCP	OTP, SCP
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	75%	75%
Size / Dimension	0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm)	0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
