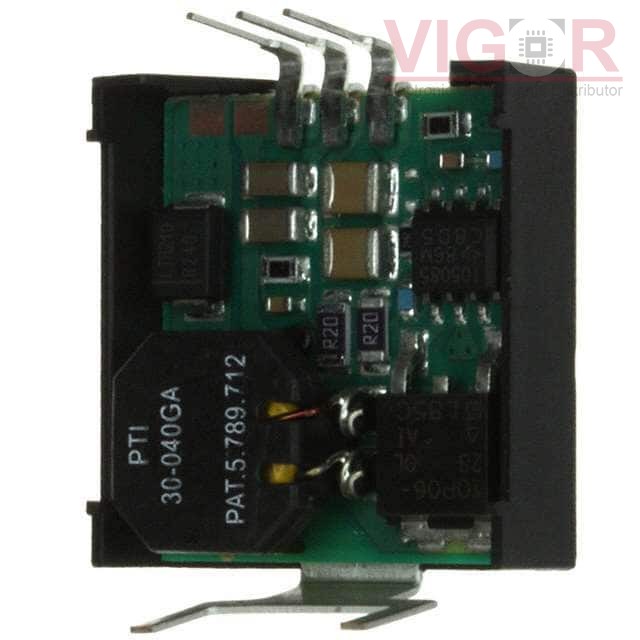

PT78NR109H

Part No :: PT78NR109H

Manufacturer: Texas Instruments

VIGOR # :: 4995491

Description: DC DC CONVERTER -9V

Catalog: DC DC Converters

DataSheet: PT78NR109H PDF

Country of origin: -

Date code: -

PT78NR109H Specifications

Type	Description
Series:	PT78NR100
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	7V
Voltage - Input (Max):	21V
Voltage - Output 1:	-9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	550mA
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	75%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT78NR107H Match 100%	Texas Instruments DC DC CONVERTER -7V	PT78NR109H vs PT78NR107H
PT78NR108H Match 100%	Texas Instruments DC DC CONVERTER -8V	PT78NR109H vs PT78NR108H
