PT78NR152S vs PT78NR105S

This detailed comparison of PT78NR152S and PT78NR105S in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

PT78NR152S

Texas Instruments

Request For Quote

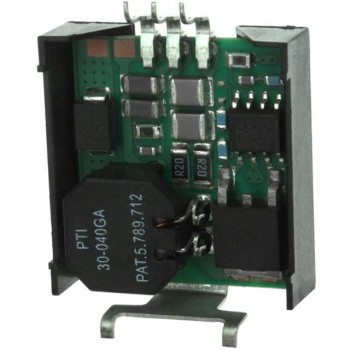

PT78NR105S

Texas Instruments

Request For Quote

Specifications Hide identical items

Manufacturer	Texas Instruments	Texas Instruments
Package / Case	3-SMD Module	3-SMD Module
Description	DC DC CONVERTER -5.2V	DC DC CONVERTER -5V
In Stock	1 728	218
Mounting Type	Surface Mount	Surface Mount
Part Status	Obsolete	Obsolete
Series	PT78NR100	PT78NR100
Package	Tray	Tray
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Number of Outputs	1	1
Voltage - Input (Min)	7V	7V
Voltage - Input (Max)	25V	25V
Voltage - Output 1	-5.2V	-5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1A	1A
Power (Watts)	-	-
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	OTP, SCP	OTP, SCP
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	75%	75%
Size / Dimension	0.94" L x 0.90" W x 0.34" H (23.9mm x 22.9mm x 8.6mm)	0.94" L x 0.90" W x 0.34" H (23.9mm x 22.9mm x 8.6mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
