PTH03060WAD vs MPDTH03060WAH

This detailed comparison of PTH03060WAD and MPDTH03060WAH in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

PTH03060WAD

VIGOR

Request For Quote

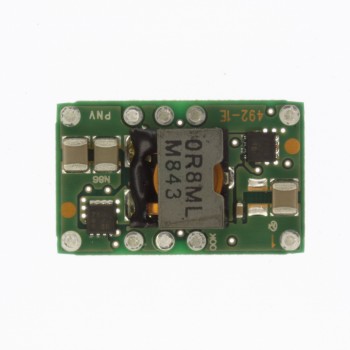

MPDTH03060WAH

Murata Power Solutions

Request For Quote

Specifications Hide identical items

Manufacturer	VIGOR	Murata Power Solutions
Package / Case	10-DIP Module	10-DIP Module
Description	PTH03060W 10 A, 3.3-V INPUT NON-	DC DC CONVERTER 0.8-2.5V 25W
In Stock	8 272	1 296
Mounting Type	Through Hole	Through Hole
Part Status	Active	Obsolete
Series	PTH03060W (25W)	MPD
Package	Bulk	Tray
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Number of Outputs	1	1
Voltage - Input (Min)	2.95V	2.95V
Voltage - Input (Max)	3.65V	3.65V
Voltage - Output 1	0.8 ~ 2.5V	0.8 ~ 2.5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	10A	10A
Power (Watts)	25 W	25 W
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, SCP, UVLO	-
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	93%	93%
Size / Dimension	1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm)	0.99" L x 0.62" W x 0.35" H (25.3mm x 15.8mm x 9.0mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
