QM48T14120-NAB0 vs QM48T14120-NAB0G

This detailed comparison of QM48T14120-NAB0 and QM48T14120-NAB0G in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

QM48T14120-NAB0

Power-One (Bel Power Solutions)

Request For Quote

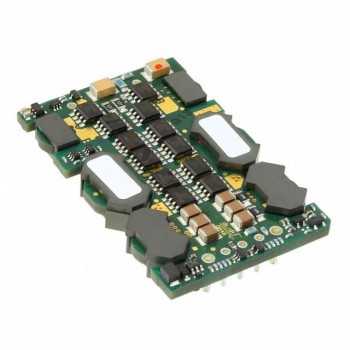

QM48T14120-NAB0G

Power-One (Bel Power Solutions)

Request For Quote

Specifications Hide identical items

Manufacturer	Power-One (Bel Power Solutions)	Power-One (Bel Power Solutions)
Package / Case	8-DIP Module, 1/4 Brick	8-DIP Module, 1/4 Brick
Description	DC DC CONVERTER 12V 168W	DC DC CONVERTER 12V 168W
In Stock	1 719	777
Mounting Type	Through Hole	Through Hole
Part Status	Obsolete	Obsolete
Series	QM	QM
Package	Bulk	Bulk
Type	Intermediate Bus Converter	Intermediate Bus Converter
Number of Outputs	1	1
Voltage - Input (Min)	36V	36V
Voltage - Input (Max)	75V	75V
Voltage - Output 1	12V	12V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	14A	14A
Power (Watts)	168 W	168 W
Voltage - Isolation	2 kV	2 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, UVLO	Remote On/Off, OCP, OTP, OVP, UVLO
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	92%	92%
Size / Dimension	2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.3mm)	2.30" L x 1.45" W x 0.33" H (58.4mm x 36.8mm x 8.3mm)
Supplier Device Package	-	-
Control Features	Enable, Active Low	Enable, Active Low
Approval Agency	-	-
Standard Number	-	-
