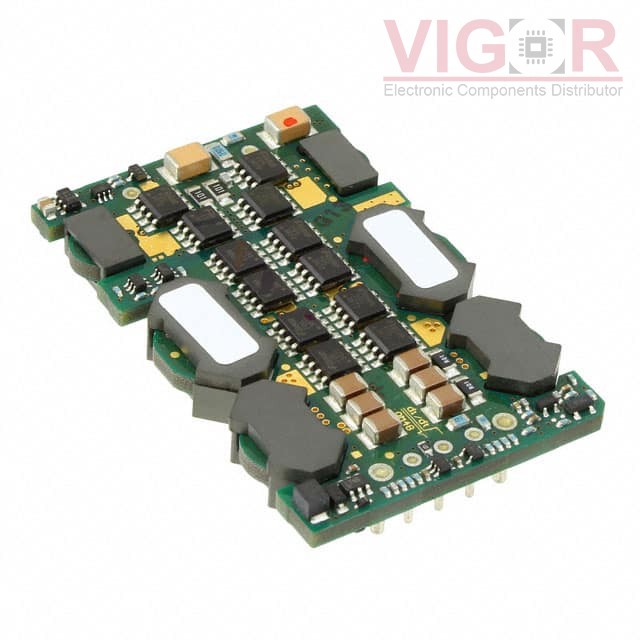

QM48T14120-NAB0G

Part No :: QM48T14120-NAB0G

Manufacturer: Power-One (Bel Power Solutions)

VIGOR # :: 5018813

Description: DC DC CONVERTER 12V 168W

Catalog: DC DC Converters

DataSheet: QM48T14120-NAB0G PDF

Country of origin: -

Date code: -

QM48T14120-NAB0G Specifications

Type	Description
Series:	QM
Package:	Bulk
Part Status:	Obsolete
Type:	Intermediate Bus Converter
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	14A
Power (Watts):	168 W
Voltage - Isolation:	2 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	92%
Mounting Type:	Through Hole
Package / Case:	8-DIP Module, 1/4 Brick
Size / Dimension:	2.30" L x 1.45" W x 0.33" H (58.4mm x 36.8mm x 8.3mm)
Supplier Device Package:	-
Control Features:	Enable, Active Low
Approval Agency:	-
Standard Number:	-
