R-625.0D vs PT6222G

This detailed comparison of R-625.0D and PT6222G in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

R-625.0D

RECOM Power

Request For Quote

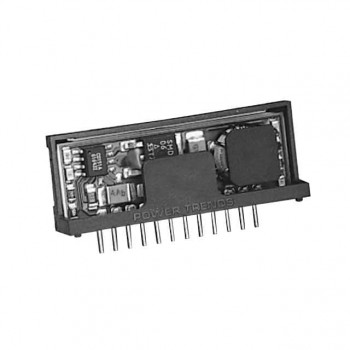

PT6222G

Texas Instruments

Request For Quote

Specifications Hide identical items

Manufacturer	RECOM Power	Texas Instruments
Package / Case	12-SIP Module	12-SIP Module
Description	DC DC CONVERTER 5V 10W	DC DC CONVERTER 5V
In Stock	384	1 522
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Part Status	Active	Obsolete
Series	INNOLINE R-6xxx	PT6220
Package	Tube	Tray
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Number of Outputs	1	1
Voltage - Input (Min)	9V	7V
Voltage - Input (Max)	32V	38V
Voltage - Output 1	5V	5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	2A	2A
Power (Watts)	10 W	-
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, SCP	-
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	90%	89%
Size / Dimension	1.27" L x 0.59" W x 0.36" H (32.2mm x 15.0mm x 9.1mm)	-
Supplier Device Package	-	-
Control Features	Enable, Active High	-
Approval Agency	-	-
Standard Number	-	-
