R-726.5P vs R-736.5P

This detailed comparison of R-726.5P and R-736.5P in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

R-726.5P

RECOM Power

Request For Quote

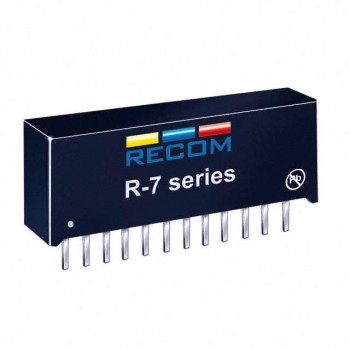

R-736.5P

RECOM Power

Request For Quote

Specifications Hide identical items

Manufacturer	RECOM Power	RECOM Power
Package / Case	12-SIP Module	12-SIP Module
Description	DC DC CONVERTER 6.5V 13W	DC DC CONVERTER 6.5V 19.5W
In Stock	977	676
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	INNOLINE R-7xxx	INNOLINE R-7xxx
Package	Tube	Tube
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Number of Outputs	1	1
Voltage - Input (Min)	8.5V	8.5V
Voltage - Input (Max)	28V	28V
Voltage - Output 1	6.5V	6.5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	2A	3A
Power (Watts)	13 W	19.5 W
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, SCP	Remote On/Off, SCP
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	97%	97%
Size / Dimension	1.27" L x 0.36" W x 0.59" H (32.2mm x 9.1mm x 15.0mm)	1.27" L x 0.36" W x 0.59" H (32.2mm x 9.1mm x 15.0mm)
Supplier Device Package	-	-
Control Features	Enable, Active High	Enable, Active High
Approval Agency	-	-
Standard Number	-	-
