R-78B3.3-1.5L vs R-78B2.5-1.5L

This detailed comparison of R-78B3.3-1.5L and R-78B2.5-1.5L in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

R-78B3.3-1.5L

RECOM Power

Request For Quote

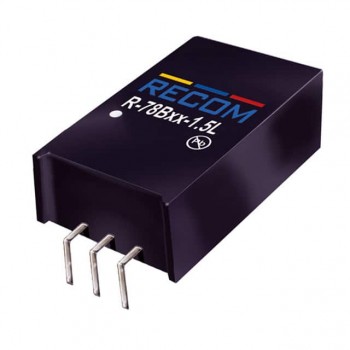

R-78B2.5-1.5L

RECOM Power

Request For Quote

Specifications Hide identical items

Manufacturer	RECOM Power	RECOM Power
Package / Case	3-SIP Module	3-SIP Module
Description	DC DC CONVERTER 3.3V 4.95W	DC DC CONVERTER 2.5V 3.75W
In Stock	268	1 674
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Part Status	Active	Obsolete
Series	INNOLINE R-78B-1.5	INNOLINE R-78B-1.5
Package	Tube	Tube
Type	Linear Regulator Replacement	Linear Regulator Replacement
Number of Outputs	1	1
Voltage - Input (Min)	4.75V	4.75V
Voltage - Input (Max)	18V	18V
Voltage - Output 1	3.3V	2.5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1.5A	1.5A
Power (Watts)	4.95 W	3.75 W
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	OTP, SCP	OTP, SCP
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	91%	88%
Size / Dimension	0.69" L x 0.45" W x 0.33" H (17.5mm x 11.5mm x 8.5mm)	0.69" L x 0.45" W x 0.33" H (17.5mm x 11.5mm x 8.5mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
