R-78T3.3-1.0/FC-R vs R-78T3.3-1.0/AL-R

This detailed comparison of R-78T3.3-1.0/FC-R and R-78T3.3-1.0/AL-R in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

R-78T3.3-1.0/FC-R

RECOM Power

Request For Quote

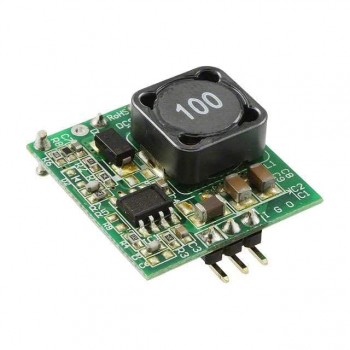

R-78T3.3-1.0/AL-R

RECOM Power

Request For Quote

Specifications Hide identical items

Manufacturer	RECOM Power	RECOM Power
Package / Case	5-SMD Module, 3 Leads	5-SMD Module, 3 Leads
Description	DC DC CONVERTER 3.3V 3W	DC DC CONVERTER 3.3V 3W
In Stock	1 967	1 478
Mounting Type	Surface Mount	Surface Mount
Part Status	Active	Active
Series	INNOLINE R-78T-1.0	INNOLINE R-78T-1.0
Package	Tape & Reel (TR)Cut Tape (CT)	Tape & Reel (TR)
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Number of Outputs	1	1
Voltage - Input (Min)	7V	7V
Voltage - Input (Max)	42V	42V
Voltage - Output 1	3.3V	3.3V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1A	1A
Power (Watts)	3 W	3 W
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	SCP	SCP
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	88%	88%
Size / Dimension	0.98" L x 0.91" W x 0.39" H (25.0mm x 23.0mm x 10.0mm)	0.98" L x 0.91" W x 0.39" H (25.0mm x 23.0mm x 10.0mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
