RNS01EG-M6 vs RNS01EE-M6

This detailed comparison of RNS01EG-M6 and RNS01EE-M6 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

RNS01EG-M6

Power-One (Bel Power Solutions)

Request For Quote

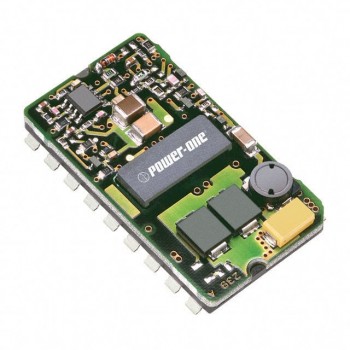

RNS01EE-M6

Power-One (Bel Power Solutions)

Request For Quote

Specifications Hide identical items

Manufacturer	Power-One (Bel Power Solutions)	Power-One (Bel Power Solutions)
Package / Case	18-SMD Module	18-SMD Module
Description	DC DC CONVERTER 5.05V 10W	DC DC CONVERTER 3.3V 10W
In Stock	1 966	588
Mounting Type	Surface Mount	Surface Mount
Part Status	Active	Obsolete
Series	RNS (10W)	RNS (10W)
Package	Bulk	Tray
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	18V
Voltage - Input (Max)	72V	72V
Voltage - Output 1	5.05V	3.3V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1.2A	1.5A
Power (Watts)	10 W	10 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OCP, UVLO	Remote On/Off, OCP
Operating Temperature	-45°C ~ 110°C	-45°C ~ 110°C
Efficiency	79%	78%
Size / Dimension	1.87" L x 1.10" W x 0.34" H (47.4mm x 28.0mm x 8.5mm)	1.87" L x 1.00" W x 0.34" H (47.5mm x 25.4mm x 8.6mm)
Supplier Device Package	-	-
Control Features	Enable, Active High	Enable, Active High
Approval Agency	-	-
Standard Number	-	-
