RSS-1212/H vs ISE1212A

This detailed comparison of RSS-1212/H and ISE1212A in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

RSS-1212/H

RECOM Power

Request For Quote

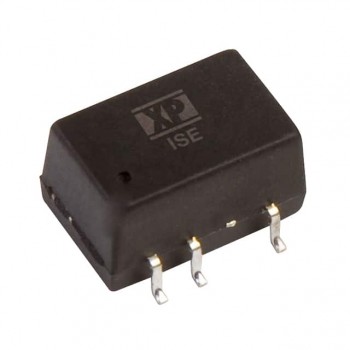

ISE1212A

XP Power

Request For Quote

Specifications Hide identical items

Manufacturer	RECOM Power	XP Power
Package / Case	8-SMD Module, 5 Leads	8-SMD Module, 5 Leads
Description	DC DC CONVERTER 12V 1W	DC DC CONVERTER 12V 1W
In Stock	509	793
Mounting Type	Surface Mount	Surface Mount
Part Status	Obsolete	Active
Series	ECONOLINE RSS (1W)	ISE (1W)
Package	Tube	Tape & Reel (TR)Cut Tape (CT)Digi-Reel®Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	10.8V	10.8V
Voltage - Input (Max)	13.2V	13.2V
Voltage - Output 1	12V	12V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	84mA	84mA
Power (Watts)	1 W	1 W
Voltage - Isolation	3 kV	1.5 kV
Applications	ITE (Commercial), Medical	ITE (Commercial)
Features	SCP	SCP
Operating Temperature	-40°C ~ 85°C	-40°C ~ 105°C
Efficiency	80%	81%
Size / Dimension	0.50" L x 0.32" W x 0.29" H (12.8mm x 8.2mm x 7.3mm)	0.50" L x 0.44" W x 0.29" H (12.7mm x 11.2mm x 7.3mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
