SRH05S09 vs SRH05S7V2

This detailed comparison of SRH05S09 and SRH05S7V2 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

SRH05S09

XP Power

Request For Quote

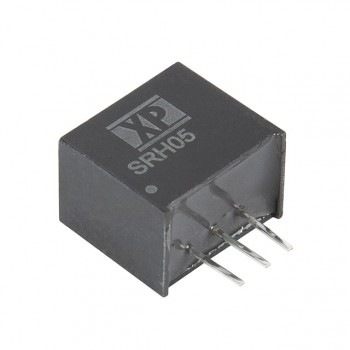

SRH05S7V2

XP Power

Request For Quote

Specifications Hide identical items

Manufacturer	XP Power	XP Power
Package / Case	3-SIP Module	3-SIP Module
Description	DC DC CONVERTER 9V	DC DC CONVERTER 7.2V
In Stock	1 996	1 123
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	SRH05	SRH05
Package	Tube	Tube
Type	Linear Regulator Replacement	Linear Regulator Replacement
Number of Outputs	1	1
Voltage - Input (Min)	14V	14V
Voltage - Input (Max)	72V	72V
Voltage - Output 1	9V	7.2V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	500mA	500mA
Power (Watts)	-	-
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	SCP	SCP
Operating Temperature	-40°C ~ 85°C (With Derating)	-40°C ~ 85°C (With Derating)
Efficiency	92%	91%
Size / Dimension	0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm)	0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm)
Supplier Device Package	3-SIP Module	3-SIP Module
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
