SUCS101215BP vs SUS101215BP

This detailed comparison of SUCS101215BP and SUS101215BP in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

SUCS101215BP

Cosel

Request For Quote

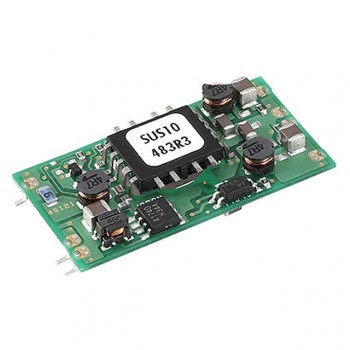

SUS101215BP

Cosel

Request For Quote

Specifications Hide identical items

Manufacturer	Cosel	Cosel
Package / Case	6-SMD Module	6-SMD Module
Description	DC DC CONVERTER 15V 12W	DC DC CONVERTER 15V 12W
In Stock	99	99
Mounting Type	Surface Mount	Surface Mount
Part Status	Active	Active
Series	SUCS (10W)	SUS (10W)
Package	Box	Box
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	9V	9V
Voltage - Input (Max)	18V	18V
Voltage - Output 1	15V	15V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	800mA	800mA
Power (Watts)	12 W	12 W
Voltage - Isolation	500 V	500 V
Applications	ITE (Commercial)	ITE (Commercial)
Features	-	-
Operating Temperature	-40°C ~ 85°C (With Derating)	-40°C ~ 85°C (With Derating)
Efficiency	87%	87%
Size / Dimension	1.58" L x 0.85" W x 0.28" H (40.2mm x 21.5mm x 7.0mm)	1.54" L x 0.83" W x 0.26" H (39.2mm x 21.0mm x 6.5mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
