SUCS1R54815C-C vs SUCS1R54812C-C

This detailed comparison of SUCS1R54815C-C and SUCS1R54812C-C in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

SUCS1R54815C-C

Cosel

Request For Quote

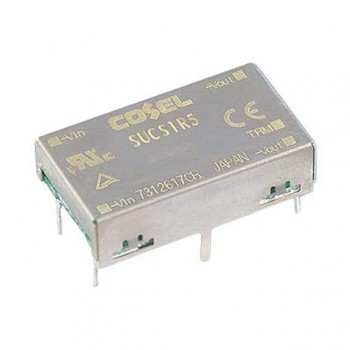

SUCS1R54812C-C

Cosel

Request For Quote

Specifications Hide identical items

Manufacturer	Cosel	Cosel
Package / Case	5-DIP Module	5-DIP Module
Description	DC DC CONVERTER 15V 1.5W	DC DC CONVERTER 12V 1.6W
In Stock	99	91
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	SUCS (1.5W)	SUCS (1.5W)
Package	Box	Box
Type	Isolated Module, Conformal Coated	Isolated Module, Conformal Coated
Number of Outputs	1	1
Voltage - Input (Min)	36V	36V
Voltage - Input (Max)	76V	76V
Voltage - Output 1	15V	12V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	100mA	130mA
Power (Watts)	1.5 W	1.6 W
Voltage - Isolation	500 V	500 V
Applications	ITE (Commercial)	ITE (Commercial)
Features	-	-
Operating Temperature	-40°C ~ 85°C (With Derating)	-40°C ~ 85°C (With Derating)
Efficiency	75%	75%
Size / Dimension	0.88" L x 0.50" W x 0.28" H (22.4mm x 12.7mm x 7.0mm)	0.88" L x 0.50" W x 0.28" H (22.4mm x 12.7mm x 7.0mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
