THL 10-4810 vs TEN 10-4810

This detailed comparison of THL 10-4810 and TEN 10-4810 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

THL 10-4810

TRACO Power

Request For Quote

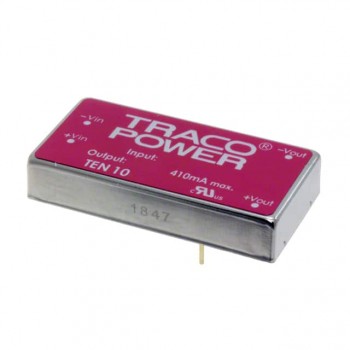

TEN 10-4810

TRACO Power

Request For Quote

Specifications Hide identical items

Manufacturer	TRACO Power	TRACO Power
Package / Case	5-DIP Module, 4 Leads	5-DIP Module, 4 Leads
Description	DC DC CONVERTER 3.3V 8.3W	DC DC CONVERTER 3.3V 7.9W
In Stock	762	1 989
Mounting Type	Through Hole	Through Hole
Part Status	Active	Not For New Designs
Series	THL 10 (10W)	TEN 10 (10W)
Package	Box	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	36V	36V
Voltage - Input (Max)	75V	75V
Voltage - Output 1	3.3V	3.3V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	2.5A	2.4A
Power (Watts)	8.3 W	7.9 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	SCP	OCP, OVP, SCP
Operating Temperature	-40°C ~ 80°C (With Derating)	-40°C ~ 85°C (With Derating)
Efficiency	83%	76%
Size / Dimension	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
