TMR 6-4811WIR vs ITZ0948S05

This detailed comparison of TMR 6-4811WIR and ITZ0948S05 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

TMR 6-4811WIR

TRACO Power

Request For Quote

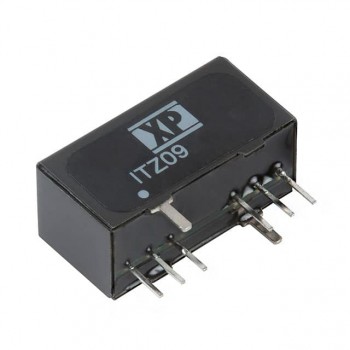

ITZ0948S05

XP Power

Request For Quote

Specifications Hide identical items

Manufacturer	TRACO Power	XP Power
Package / Case	8-SIP Module	8-SIP Module
Description	DC DC CONVERTER 5V 6W	DC DC CONVERTER 5V 9W
In Stock	404	1 591
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	TMR 6WIR (6W)	ITZ (9W)
Package	Tube	Bulk
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	18V
Voltage - Input (Max)	75V	75V
Voltage - Output 1	5V	5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1.2A	1.6A
Power (Watts)	6 W	-
Voltage - Isolation	3 kV	1.5 kV
Applications	ITE (Commercial), Railway	ITE (Commercial)
Features	Remote On/Off, OCP, SCP	Remote On/Off, SCP
Operating Temperature	-40°C ~ 80°C (With Derating)	-40°C ~ 85°C (With Derating)
Efficiency	84%	85%
Size / Dimension	0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)	0.86" L x 0.38" W x 0.44" H (21.9mm x 9.6mm x 11.2mm)
Supplier Device Package	-	8-SIP
Control Features	-	Enable, Active Low
Approval Agency	-	-
Standard Number	-	62368-1
