VAWQ3-Q48-S15H vs VAWQ3-Q48-S12H

This detailed comparison of VAWQ3-Q48-S15H and VAWQ3-Q48-S12H in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

VAWQ3-Q48-S15H

CUI Inc.

Request For Quote

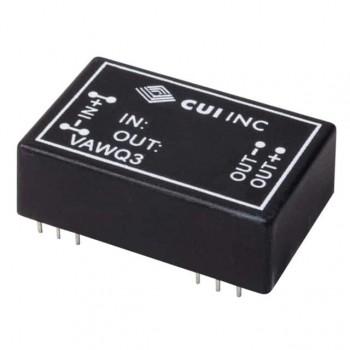

VAWQ3-Q48-S12H

CUI Inc.

Request For Quote

Specifications Hide identical items

Manufacturer	CUI Inc.	CUI Inc.
Package / Case	24-DIP Module, 15 Leads	24-DIP Module, 15 Leads
Description	DC DC CONVERTER 15V 3W	DC DC CONVERTER 12V 3W
In Stock	999	1 704
Mounting Type	Through Hole	Through Hole
Part Status	Not For New Designs	Active
Series	VAWQ3 (3W)	VAWQ3 (3W)
Package	Box	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	18V
Voltage - Input (Max)	72V	72V
Voltage - Output 1	15V	12V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	200mA	250mA
Power (Watts)	3 W	3 W
Voltage - Isolation	3 kV	3 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	SCP	SCP
Operating Temperature	-25°C ~ 71°C	-25°C ~ 71°C
Efficiency	80%	80%
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
