VYB15W-Q48-S15 vs CCG154815S

This detailed comparison of VYB15W-Q48-S15 and CCG154815S in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

VYB15W-Q48-S15

CUI Inc.

Request For Quote

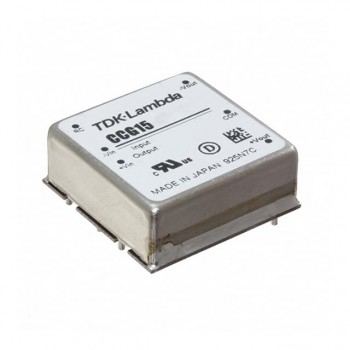

CCG154815S

TDK-Lambda, Inc.

Request For Quote

Specifications Hide identical items

Manufacturer	CUI Inc.	TDK-Lambda, Inc.
Package / Case	6-DIP Module	6-DIP Module
Description	DC DC CONVERTER 15V 15W	DC DC CONVERTER 15V 15W
In Stock	1 706	227
Mounting Type	Through Hole	Through Hole
Part Status	Obsolete	Active
Series	VYB15W (15W)	CCG15 (15W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	18V
Voltage - Input (Max)	75V	76V
Voltage - Output 1	15V	15V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1A	1A
Power (Watts)	15 W	15 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP, UVLO	Remote On/Off, OCP, OVP
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	85%	88%
Size / Dimension	2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm)	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Supplier Device Package	-	-
Control Features	Enable, Active High	Enable, Active Low
Approval Agency	-	-
Standard Number	-	-
