ZUS10483R3 vs PTMA403033A1AD

This detailed comparison of ZUS10483R3 and PTMA403033A1AD in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

ZUS10483R3

Cosel

Request For Quote

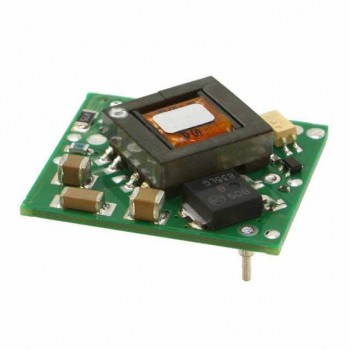

PTMA403033A1AD

Texas Instruments

Request For Quote

Specifications Hide identical items

Manufacturer	Cosel	Texas Instruments
Package / Case	4-DIP Module	4-DIP Module
Description	DC DC CONVERTER 3.3V 6.6W	DC DC CONVERTER 3.3V 10W
In Stock	1 676	1 564
Mounting Type	Through Hole	Through Hole
Part Status	Active	Not For New Designs
Series	ZUS (10W)	PTMA40xx (10W)
Package	Box	Tray
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	36V	36V
Voltage - Input (Max)	72V	75V
Voltage - Output 1	3.3V	3.3V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	2A	3A
Power (Watts)	6.6 W	10 W
Voltage - Isolation	500 V	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	-	-
Operating Temperature	-20°C ~ 71°C (With Derating)	-40°C ~ 85°C
Efficiency	75%	82%
Size / Dimension	1.77" L x 1.38" W x 0.28" H (45.0mm x 35.0mm x 7.0mm)	1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.6mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
