TMR 6-2410WIR vs ITZ0924S3V3

This detailed comparison of TMR 6-2410WIR and ITZ0924S3V3 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

TMR 6-2410WIR

TRACO Power

Request For Quote

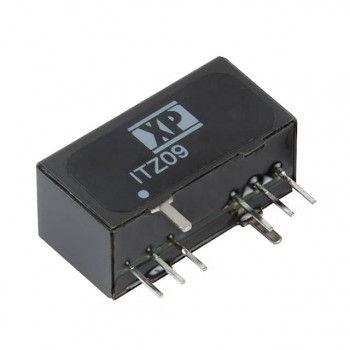

ITZ0924S3V3

XP Power

Request For Quote

Specifications Hide identical items

Manufacturer	TRACO Power	XP Power
Package / Case	8-SIP Module	8-SIP Module
Description	DC DC CONVERTER 3.3V 5W	DC DC CONVERTER 3.3V 9W
In Stock	30	382
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	TMR 6WIR (6W)	ITZ (9W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	9V	9V
Voltage - Input (Max)	36V	36V
Voltage - Output 1	3.3V	3.3V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1.5A	2A
Power (Watts)	5 W	-
Voltage - Isolation	3 kV	1.5 kV
Applications	ITE (Commercial), Railway	ITE (Commercial)
Features	Remote On/Off, OCP, SCP	Remote On/Off, SCP
Operating Temperature	-40°C ~ 80°C (With Derating)	-40°C ~ 85°C (With Derating)
Efficiency	81%	82%
Size / Dimension	0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)	0.86" L x 0.38" W x 0.44" H (21.9mm x 9.6mm x 11.2mm)
Supplier Device Package	-	8-SIP
Control Features	-	Enable, Active Low
Approval Agency	-	-
Standard Number	-	62368-1
