Quick Answer on CR2450 vs CR2032 Interchangeability
TL;DR: No, CR2450 and CR2032 are not strictly interchangeable. They share the same 3.0V lithium manganese dioxide coin cells, but they differ in size, capacity, and load capability in ways that directly affect fit and runtime.
| Spec | CR2032 | CR2450 |
| Chemistry | Lithium / Manganese Dioxide (Li/MnO2) | Lithium / Manganese Dioxide (Li/MnO2) |
| Nominal Voltage | 3.0V | 3.0V |
| Diameter | 20.0 mm | 24.5 mm |
| Thickness | 3.2 mm | 5.0 mm |
| Typical Capacity | 210–240 mAh | 600–620 mAh |
| Interchangeable? | No | No |
-
If you are asking are cr2450 and cr2032 interchangeable, the practical answer is no because the holder dimensions are different.
-
If you are asking is cr2450 the same as cr2032, the answer is also no because the batteries match in chemistry and voltage only, not in form factor or energy reserve.
-
For replacement, always follow the battery code specified by the device maker.
Physical Dimensions and Key Size Differences
The IEC naming format is useful because it tells the story directly. In both part numbers, CR identifies a primary lithium coin cell based on lithium manganese dioxide chemistry. The numeric suffix then describes the approximate dimensions: CR2032 is about 20 mm in diameter and 3.2 mm thick, while CR2450 is about 24.5 mm in diameter and 5.0 mm thick.
| Dimension Item | CR2032 | CR2450 | Difference |
| IEC Meaning | 20 mm diameter, 3.2 mm thick | 24.5 mm diameter, 5.0 mm thick | — |
| Diameter | 20.0 mm | 24.5 mm | 4.5 mm |
| Thickness | 3.2 mm | 5.0 mm | 1.8 mm |
| Fit in CR2032 Holder | Native fit | Usually cannot fit | — |
| Fit in CR2450 Holder | Loose and unstable | Native fit | — |
-
The 4.5 mm diameter difference is large enough to prevent a CR2450 from fitting into a normal CR2032 slot.
-
The 1.8 mm thickness difference means a CR2032 usually cannot sit securely in a CR2450 holder without losing contact stability.
-
In physical terms, the smaller cell leaves both side clearance and height gap inside the larger holder, so power interruptions become much more likely under vibration or repeated use.
Battery Capacity and Long-Term Performance Metrics
Capacity is where the CR2450 clearly separates itself from the CR2032, especially in longer-life or pulse-driven products.
| Performance Metric | CR2032 | CR2450 |
| Typical Capacity | 210–240 mAh | 600–620 mAh |
| Low-Drain Suitability | Good | Excellent |
| Pulse / Burst Current | More limited | Better suited |
| Voltage Stability Under Repeated Pulse | Drops faster | More stable |
| Typical Operating Range | Around -20°C to +60°C | Often around -30°C to +60°C depending on listing |
| Runtime in Same Duty Cycle | Shorter | Longer |
-
A CR2450 typically stores roughly 2.5 times the energy of a CR2032 under common datasheet conditions.
-
Lithium coin cells work best at low drain, and usable capacity falls as pulse demand becomes heavier or more frequent.
-
That is why CR2450 is usually preferred for devices that need stronger peak-current events, such as RF transmission, indicator LEDs, or higher-demand remote functions.
-
For engineering decisions, nominal capacity alone is not enough; actual duty cycle, cutoff voltage, and ambient temperature should all be validated in the final product.

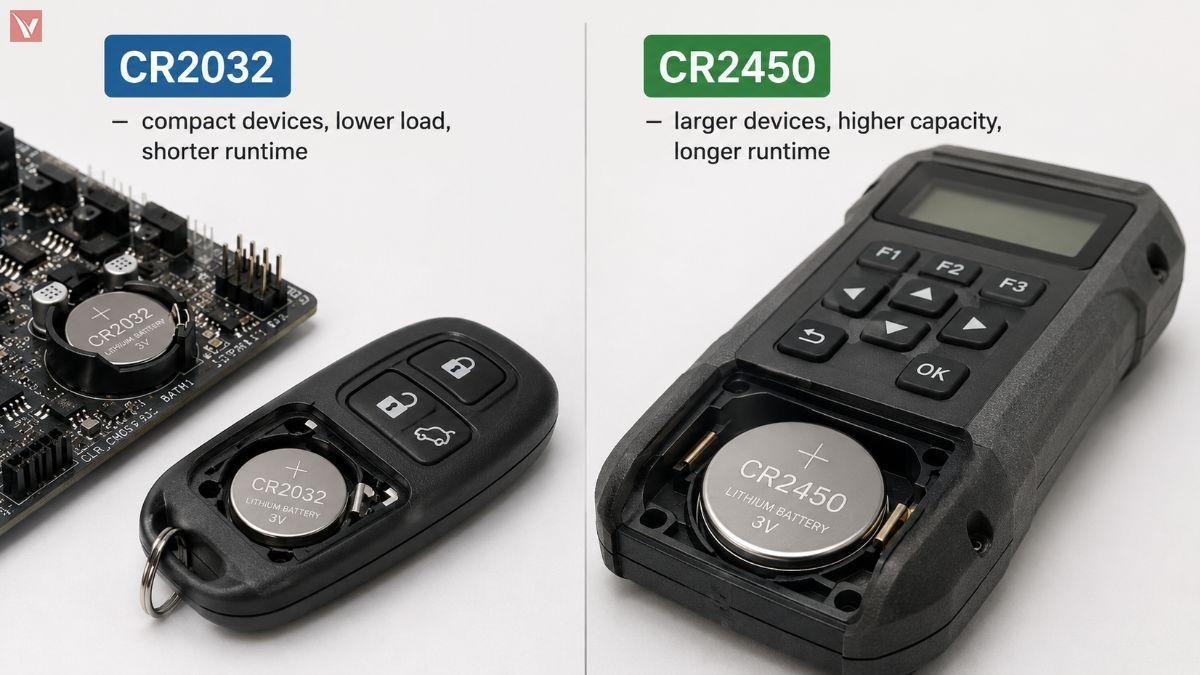

Typical Applications for Each Coin Cell Battery
The application split between CR2032 and CR2450 follows the same pattern as the size and capacity differences above.
| Application | CR2032 | CR2450 | Why |
| PC Motherboards / CMOS Backup | Common | Rare | Ultra-low drain and standardized holder format |
| Basic Calculators | Common | Less common | Low power draw suits a smaller cell |
| Standard Car Key Fobs | Common | Used in some models | Depends on remote design and burst demand |
| Thin Fitness Trackers | Preferred | Usually too thick | Slim packaging matters |
| Smart Door Locks | Less typical | Preferred | Longer runtime and stronger pulse support |
| IoT Sensors | Used in smaller nodes | Preferred for longer-life nodes | Lower maintenance frequency |
| Medical Devices | Used in simpler low-load designs | Common in longer-life compact devices | Reliability margin is important |
| High-Drain Automotive Remotes | More limited | Better suited | Burst current matters |
-
CR2032 is the better choice when thinness, broad availability, and standardized holders matter most.
-
CR2450 is the better choice when service interval, energy reserve, or burst-current stability matter more than ultra-thin packaging.
-
For buyers managing deployed products, longer replacement intervals can reduce service cost even if the larger battery has a higher unit price.
Emergency Replacement Tricks and Safety Considerations
A CR2032 can sometimes be used in a CR2450 slot as a temporary emergency workaround by adding folded aluminum foil to bridge the height difference, but this is not a proper replacement method.
| Emergency Issue | Using CR2032 in CR2450 Slot |
| Thickness Gap | 1.8 mm must be bridged |
| Diameter Mismatch | 4.5 mm smaller, so the cell can move |
| Runtime Impact | Much shorter because CR2032 has far lower capacity |
| Pulse Performance | More likely to fail under burst load |
| Safety Risk | Higher short-circuit risk if foil shifts |
| Correct Usage | Temporary emergency only |
-
This trick is only for an absolute emergency, such as briefly powering a device until the correct battery arrives.
-
Folded foil can shift and create a short circuit, especially inside spring-loaded holders.
-
Even if the device powers on, the smaller battery will usually deliver much shorter runtime and less stable performance.
-
Keep coin cells away from children, observe polarity, and never use damaged or leaking cells.
Sourcing Authentic Coin Batteries for Manufacturing Needs
For business electronics components procurement, the key issue is not only choosing CR2032 or CR2450 correctly, but also sourcing authentic and consistent cells across production lots.
| Procurement Factor | Why It Matters |
| Counterfeit Risk | Fake or substandard cells can fail early or underperform in the field |
| Capacity Consistency | Lot variation changes runtime and warranty outcomes |
| Internal Resistance | Poor pulse support can break RF or alert-driven devices |
| Storage History | Old stock may lose shelf life before assembly |
| Mechanical Tolerance | Dimensional drift can affect holder fit and assembly quality |
| Supply Continuity | Shortages can delay builds and disrupt procurement planning |
-
A reliable supply chain reduces risk in qualification, mass production, and field replacement programs.
-
For OEM and EMS teams, battery quality directly affects service life, user experience, and warranty exposure.
Streamlining Procurement with Vigorcomp Independent Distribution
At Vigorcomp, we operate as an independent electronic components distributor based in Singapore, built on more than 15 years of industry experience through our founder. To help customers source original, high‑quality components reliably across global supply chains.
We focus on maintaining an efficient supply chain that can respond quickly when demand changes or standard channels are constrained. By sourcing through multiple lawful routes worldwide and continuously monitoring availability, we help reduce shortage risk, support urgent project needs, and keep build schedules on track.
In 2025, we launched an enhanced online ordering platform, making it easier for customers to browse parts, check real‑time inventory, place orders, and track shipments in one place. This platform is designed to streamline day‑to‑day procurement: fewer emails, faster decisions, and clearer visibility into what is actually in stock.
Even for something as small as a coin cell, we treat every line item as critical to the final product. Our aim is to combine independent distribution, a responsive supply chain, and a practical online system so that customers can source components with more confidence and less friction.
Final Verdict on Choosing the Right Battery
CR2450 and CR2032 share the same 3V chemistry, but the size difference determines how they are actually used.
| Final Decision Factor | CR2032 | CR2450 |
| Best For | Slim, low-drain, standardized designs | Longer-life, higher-demand devices |
| Holder Compatibility | CR2032 holders only | CR2450 holders only |
| Runtime Expectation | Shorter | Longer |
| Burst Load Tolerance | Lower | Higher |
| Replacement Guidance | Match the existing CR2032 spec | Match the existing CR2450 spec |
-
For consumers, the right move is simple: match the battery code already specified by the device.
-
For engineers, voltage is only the starting point; holder geometry, pulse demand, and service-life target matter more.
-
For procurement teams, battery sourcing should be treated like any other critical BOM decision, with attention to authenticity, consistency, and supply continuity.
