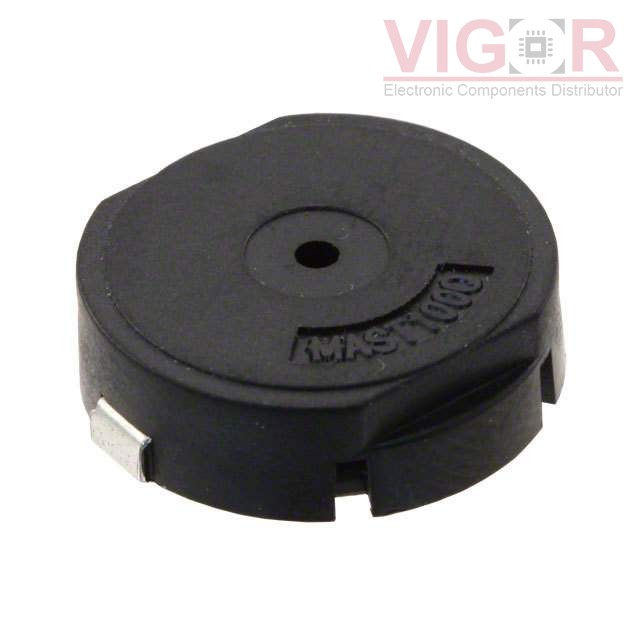

AST100Q

Image is for reference,
please contact us to get the real picture

Part No :: AST100Q

Manufacturer: Mallory Sonalert Products

Description: AUDIO PIEZO TRANSDUCER 1-15V SMD

Catalog: Alarms, Buzzers, and Sirens

DataSheet: AST100Q PDF

Availability: 275 pieces

Unit Price: ~~$2.11000~~

Current price of AST100Q is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AST100Q Specifications

Type	Description
Series:	AST
Package:	Tube
Part Status:	Active
Driver Circuitry:	Transducer, Externally Driven
Input Type:	Peak-Peak Signal
Voltage - Rated:	5 V
Voltage Range:	1 ~ 15V
Frequency:	4kHz
Technology:	Piezo
Operating Mode:	Single Tone
Duration:	-
Sound Pressure Level (SPL):	80dB @ 5V, 10cm
Current - Supply:	1.5mA
Port Location:	Top
Operating Temperature:	-20°C ~ 70°C
Approval Agency:	-
Ratings:	-
Ingress Protection:	-
Mounting Type:	Surface Mount
Termination:	Solder Pads
Size / Dimension:	0.669" Dia (17.00mm)
Height - Seated (Max):	0.205" (5.20mm)

Please confirm the specifications of the products when ordering.
