EEV-TG1K101UQ

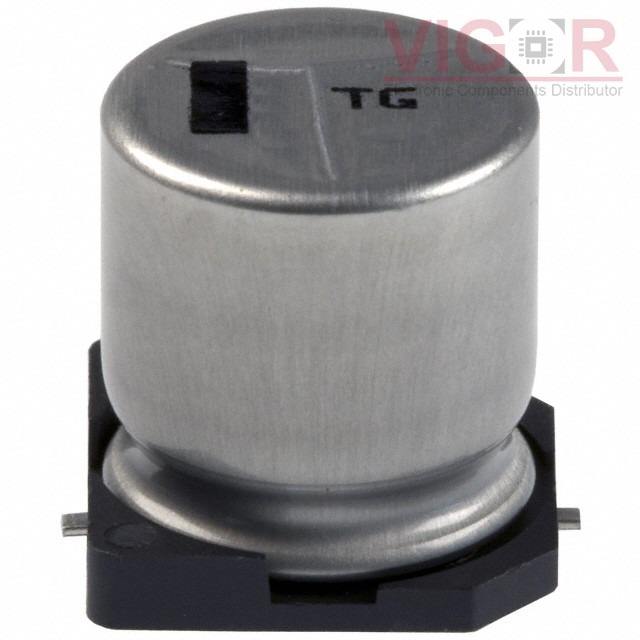

Image is for reference,
please contact us to get the real picture

Part No :: EEV-TG1K101UQ

Manufacturer: Panasonic

Description: CAP ALUM 100UF 20% 80V SMD

Catalog: Aluminum Electrolytic Capacitors

DataSheet: EEV-TG1K101UQ PDF

Availability: 0 pieces

Unit Price: ~~$1.81000~~

Current price of EEV-TG1K101UQ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EEV-TG1K101UQ Specifications

Type	Description
Series:	TG
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Capacitance:	100 µF
Tolerance:	±20%
Voltage - Rated:	80 V
ESR (Equivalent Series Resistance):	420mOhm @ 100kHz
Lifetime @ Temp.:	2000 Hrs @ 125°C
Operating Temperature:	-40°C ~ 125°C
Polarization:	Polar
Ratings:	AEC-Q200
Applications:	Automotive
Ripple Current @ Low Frequency:	162.5 mA @ 120 Hz
Ripple Current @ High Frequency:	250 mA @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.492" Dia (12.50mm)
Height - Seated (Max):	0.531" (13.50mm)
Surface Mount Land Size:	0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

Please confirm the specifications of the products when ordering.
