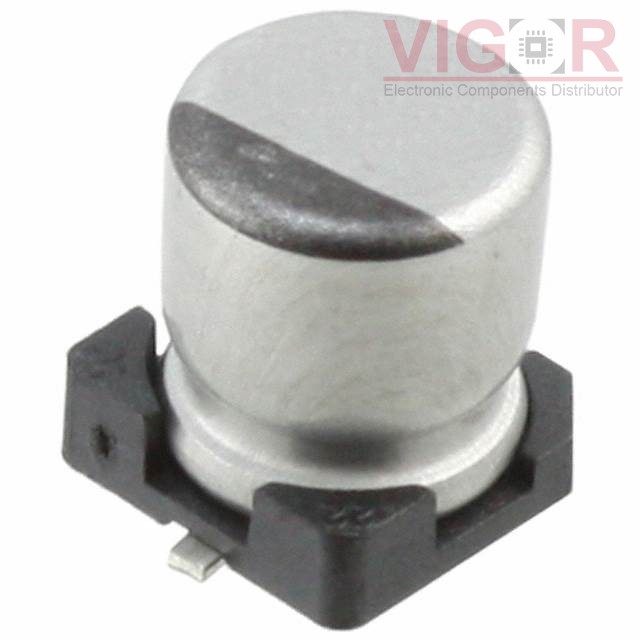

UCL1E220MCL1GS

Part No :: UCL1E220MCL1GS

Manufacturer: Nichicon

Description: CAP ALUM 22UF 20% 25V SMD

Catalog: Aluminum Electrolytic Capacitors

DataSheet: UCL1E220MCL1GS PDF

Availability: 0 pieces

Current price of UCL1E220MCL1GS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

UCL1E220MCL1GS Specifications

Type	Description
Series:	UCL
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Capacitance:	22 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	120 mA @ 120 Hz
Ripple Current @ High Frequency:	240 mA @ 100 kHz
Impedance:	360 mOhms
Lead Spacing:	-
Size / Dimension:	0.197" Dia (5.00mm)
Height - Seated (Max):	0.228" (5.80mm)
Surface Mount Land Size:	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD
