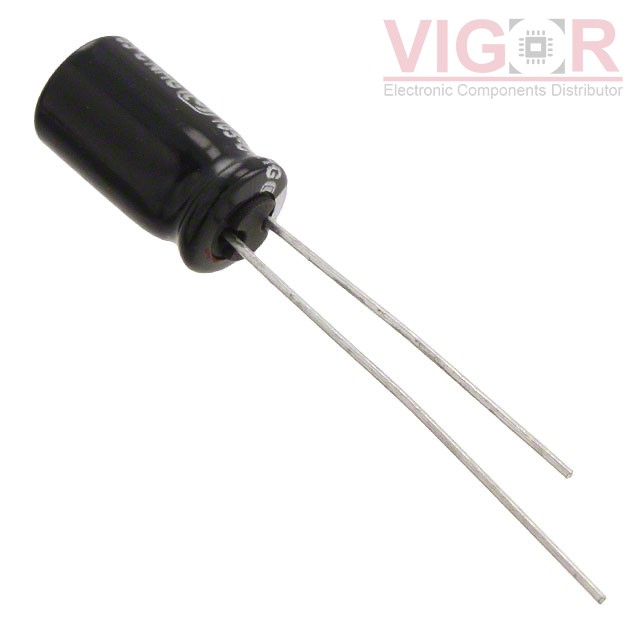

ECA-1VHG101B

Part No :: ECA-1VHG101B

Manufacturer: Panasonic

Description: CAP ALUM 100UF 20% 35V RADIAL

Catalog: Aluminum Electrolytic Capacitors

DataSheet: ECA-1VHG101B PDF

Availability: 0 pieces

Current price of ECA-1VHG101B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ECA-1VHG101B Specifications

Type	Description
Series:	NHG
Package:	Cut Tape (CT)Tape & Box (TB)
Part Status:	Active
Capacitance:	100 µF
Tolerance:	±20%
Voltage - Rated:	35 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	1000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	150 mA @ 120 Hz
Ripple Current @ High Frequency:	225 mA @ 100 kHz
Impedance:	-
Lead Spacing:	0.197" (5.00mm)
Size / Dimension:	0.248" Dia (6.30mm)
Height - Seated (Max):	0.480" (12.20mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can
