EEE-HB1E100AR

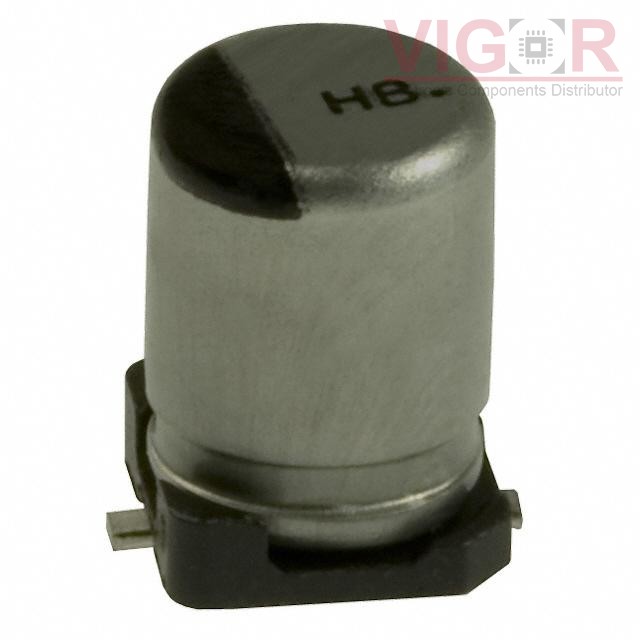

Image is for reference,
please contact us to get the real picture

Part No :: EEE-HB1E100AR

Manufacturer: Panasonic

Description: CAP ALUM 10UF 20% 25V SMD

Catalog: Aluminum Electrolytic Capacitors

DataSheet: EEE-HB1E100AR PDF

Availability: 5682 pieces

Unit Price: ~~$0.40000~~

Current price of EEE-HB1E100AR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EEE-HB1E100AR Specifications

Type	Description
Series:	HB
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Capacitance:	10 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	AEC-Q200
Applications:	Automotive
Ripple Current @ Low Frequency:	28 mA @ 120 Hz
Ripple Current @ High Frequency:	47.6 mA @ 10 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.197" Dia (5.00mm)
Height - Seated (Max):	0.228" (5.80mm)
Surface Mount Land Size:	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD
