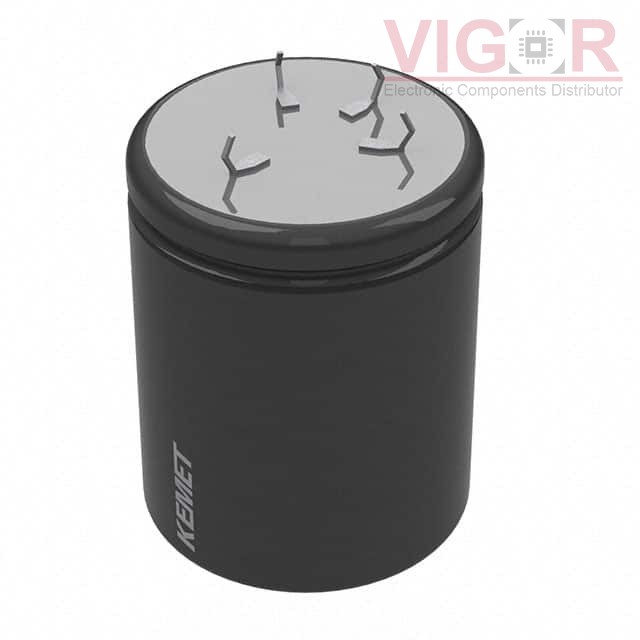

ALC70E561EF500

Part No :: ALC70E561EF500

Manufacturer: KEMET

VIGOR # :: 948788

Description: CAP ALUM 560UF 20% 500V RADIAL

Catalog: Aluminum Electrolytic Capacitors

DataSheet: ALC70E561EF500 PDF

Country of origin: -

Date code: -

ALC70E561EF500 Specifications

Type	Description
Series:	ALC70
Package:	Bulk
Part Status:	Active
Capacitance:	560 µF
Tolerance:	±20%
Voltage - Rated:	500 V
ESR (Equivalent Series Resistance):	370mOhm @ 100Hz
Lifetime @ Temp.:	18000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	3.02 A @ 100 Hz
Ripple Current @ High Frequency:	6.04 A @ 10 kHz
Impedance:	264 mOhms
Lead Spacing:	0.886" (22.50mm)
Size / Dimension:	1.575" Dia (40.00mm)
Height - Seated (Max):	2.047" (52.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can - Snap-In - 4 Lead

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 03 - Jan 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$9.51~~	~~$9.51~~
216	~~$9.51~~	~~$2 055.15~~

Current price of ALC70E561EF500 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

UWP1H4R7MCL1GB

CAP ALUM 4.7UF 20% 50V SMD

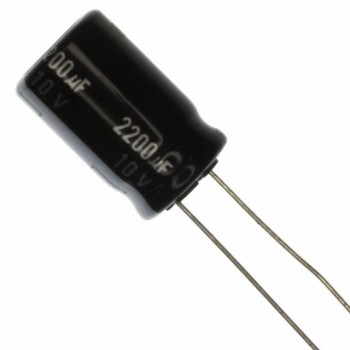

EEU-EB1C222

CAP ALUM 2200UF 20% 16V RADIAL

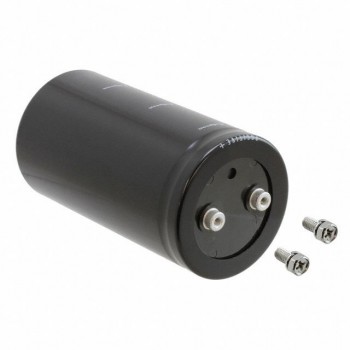

80LSQ100000MNB77X141
