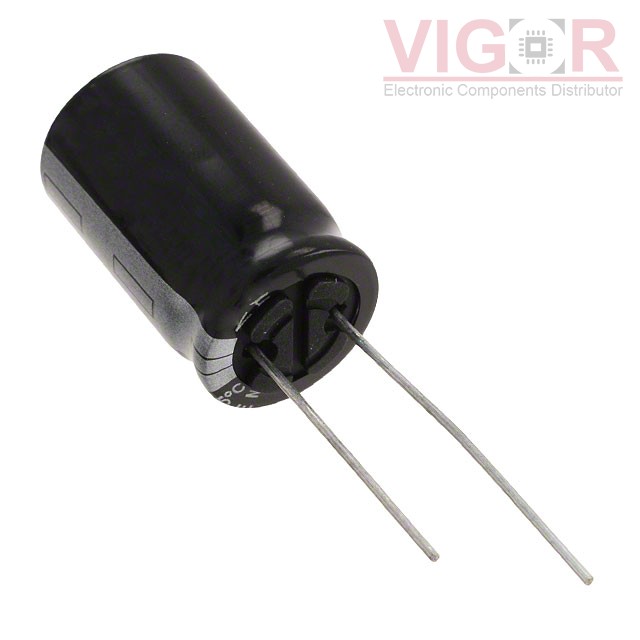

ECA-2CHG101

Part No :: ECA-2CHG101

Manufacturer: Panasonic

Description: CAP ALUM 100UF 20% 160V RADIAL

Catalog: Aluminum Electrolytic Capacitors

DataSheet: ECA-2CHG101 PDF

Availability: 322 pieces

Current price of ECA-2CHG101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ECA-2CHG101 Specifications

Type	Description
Series:	NHG
Package:	Bulk
Part Status:	Active
Capacitance:	100 µF
Tolerance:	±20%
Voltage - Rated:	160 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-25°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	70 mA @ 120 Hz
Ripple Current @ High Frequency:	502.5 mA @ 100 kHz
Impedance:	-
Lead Spacing:	0.295" (7.50mm)
Size / Dimension:	0.630" Dia (16.00mm)
Height - Seated (Max):	1.063" (27.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can
