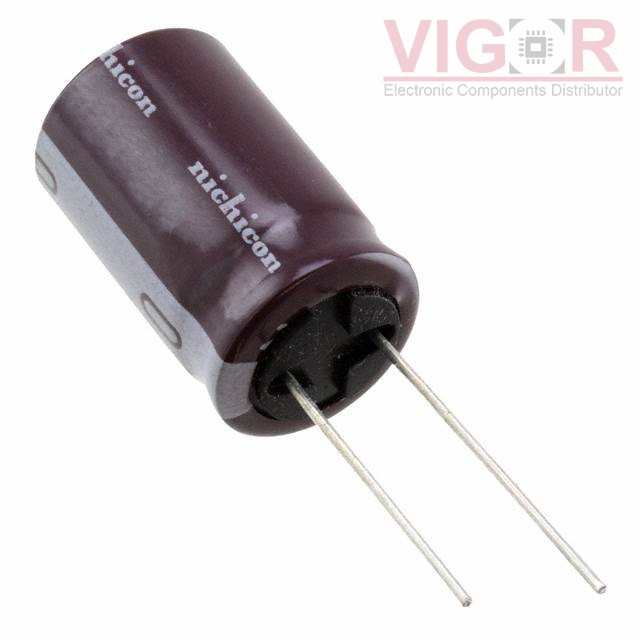

UPS1E222MHD1TN

Part No :: UPS1E222MHD1TN

Manufacturer: Nichicon

Description: CAP ALUM 2200UF 20% 25V RADIAL

Catalog: Aluminum Electrolytic Capacitors

DataSheet: UPS1E222MHD1TN PDF

Availability: 24 pieces

Current price of UPS1E222MHD1TN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

UPS1E222MHD1TN Specifications

Type	Description
Series:	UPS
Package:	Cut Tape (CT)Tape & Box (TB)
Part Status:	Active
Capacitance:	2200 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	3000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	1.653 A @ 120 Hz
Ripple Current @ High Frequency:	1.9 A @ 100 kHz
Impedance:	38 mOhms
Lead Spacing:	0.295" (7.50mm)
Size / Dimension:	0.630" Dia (16.00mm)
Height - Seated (Max):	1.063" (27.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can
