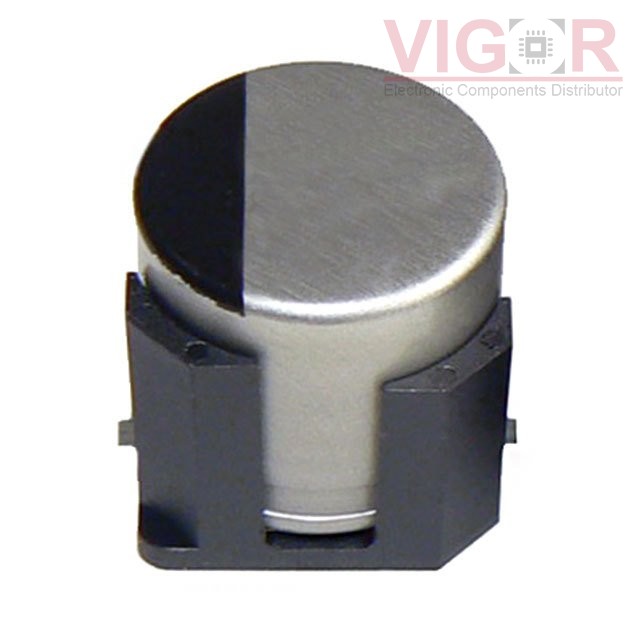

HZA226M080F24VT-F

Part No :: HZA226M080F24VT-F

Manufacturer: Cornell Dubilier Electronics

VIGOR # :: 1583080

Description: CAP ALUM POLY HYB 22UF 80V SMD

Catalog: Aluminum - Polymer Capacitors

DataSheet: HZA226M080F24VT-F PDF

Country of origin: -

Date code: -

HZA226M080F24VT-F Specifications

Type	Description
Series:	HZA_V
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Hybrid
Capacitance:	22 µF
Tolerance:	±20%
Voltage - Rated:	80 V
ESR (Equivalent Series Resistance):	45mOhm
Lifetime @ Temp.:	10000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Ratings:	AEC-Q200
Applications:	Automotive, Bypass, Decoupling
Ripple Current @ Low Frequency:	155 mA @ 220 Hz
Ripple Current @ High Frequency:	1.55 A @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.315" Dia (8.00mm)
Height - Seated (Max):	0.413" (10.50mm)
Surface Mount Land Size:	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1123000

Shipped from

HK warehouse

Expected Shipping Date

Feb 02 - Feb 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.90~~	~~$2.90~~
500	~~$1.53~~	~~$763.86~~
1000	~~$1.42~~	~~$1 422.36~~
2500	~~$1.37~~	~~$3 424.20~~
5000	~~$1.34~~	~~$6 716.70~~

Current price of HZA226M080F24VT-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
