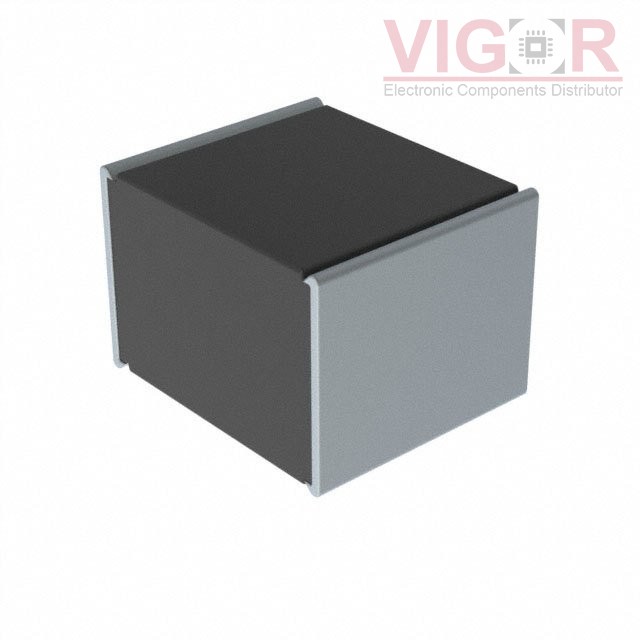

SMDND03680TB00MQ00

Part No :: SMDND03680TB00MQ00

Manufacturer: WIMA

Description: CAP FILM 0.68UF 20% 100VDC 2824

Catalog: Film Capacitors

DataSheet: SMDND03680TB00MQ00 PDF

Availability: 689 pieces

Current price of SMDND03680TB00MQ00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SMDND03680TB00MQ00 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Capacitance:	0.68 µF
Tolerance:	±20%
Voltage Rating - AC:	63V
Voltage Rating - DC:	100V
Dielectric Material:	Polyester, Polyethylene Naphthalate (PEN), Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	2824 (7260 Metric)
Size / Dimension:	0.283" L x 0.240" W (7.20mm x 6.10mm)
Height - Seated (Max):	0.209" (5.30mm)
Termination:	Solder Pads
Lead Spacing:	-
Applications:	General Purpose
Ratings:	-
Features:	-
