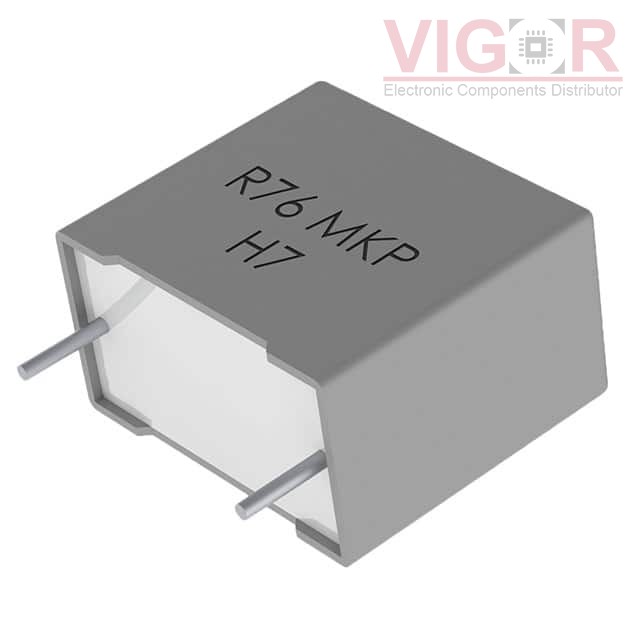

R76UN1220SE00J

Part No :: R76UN1220SE00J

Manufacturer: KEMET

VIGOR # :: 1544762

Description: CAP FILM 2200PF 5% 2KVDC RADIAL

Catalog: Film Capacitors

DataSheet: R76UN1220SE00J PDF

Country of origin: -

Date code: -

R76UN1220SE00J Specifications

Type	Description
Series:	R76
Package:	Bulk
Part Status:	Active
Capacitance:	2200 pF
Tolerance:	±5%
Voltage Rating - AC:	700V
Voltage Rating - DC:	2000V (2kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 110°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.043" L x 0.236" W (26.50mm x 6.00mm)
Height - Seated (Max):	0.591" (15.00mm)
Termination:	PC Pins
Lead Spacing:	0.886" (22.50mm)
Applications:	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings:	AEC-Q200
Features:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 259

Shipped from

HK warehouse

Expected Shipping Date

Apr 05 - Apr 09 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.9800~~	~~$0.98~~
10	~~$0.7773~~	~~$7.77~~
100	~~$0.5830~~	~~$58.30~~
500	~~$0.4404~~	~~$220.22~~
1000	~~$0.3886~~	~~$388.62~~
2500	~~$0.3627~~	~~$906.78~~
5000	~~$0.3498~~	~~$1 748.80~~

Current price of R76UN1220SE00J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
