Part No :

ECW-FD2W684J4

Manufacturer
Panasonic
VIGOR # :

1547706

Description

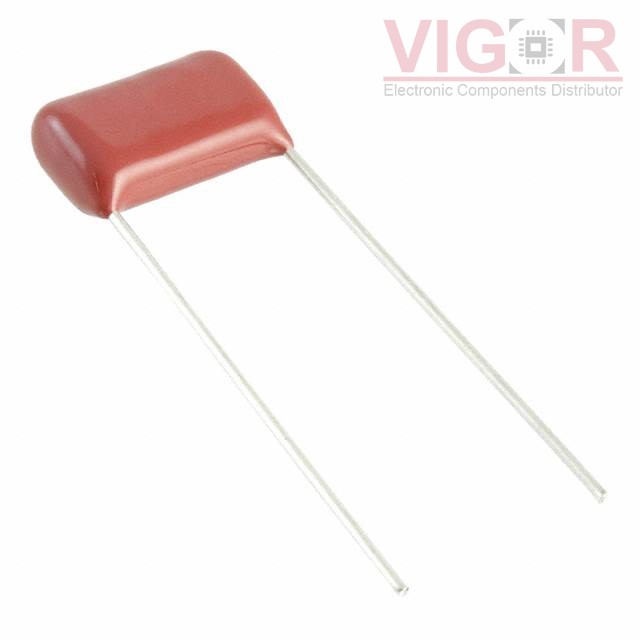

CAP FILM 0.68UF 5% 450VDC RADIAL
Catalog
Film Capacitors
DataSheet
ECW-FD2W684J4 PDF
Country of origin
Confirming
Date code
TBC
ads
Type Description
Series:ECW-F(D)
Package:Cut Tape (CT)Tape & Box (TB)
Part Status:Active
Capacitance:0.68 µF
Tolerance:±5%
Voltage Rating - AC:84V
Voltage Rating - DC:450V
Dielectric Material:Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):-
Operating Temperature:-40°C ~ 110°C
Mounting Type:Through Hole
Package / Case:Radial
Size / Dimension:0.689" L x 0.264" W (17.50mm x 6.70mm)
Height - Seated (Max):0.390" (9.90mm)
Termination:PC Pins
Lead Spacing:0.295" (7.50mm)
Applications:EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT
Ratings:-
Features:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Shipped from
HK warehouse
Expected Shipping Date
Nov 20 - Nov 24 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.7100 $0.71
400 $0.3090 $123.58
800 $0.2476 $198.12
1200 $0.2354 $282.47
2000 $0.2231 $446.26
4000 $0.2109 $843.48
10000 $0.1986 $1 986.10
20000 $0.1956 $3 911.00
40000 $0.1925 $7 699.20

Current price of ECW-FD2W684J4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
