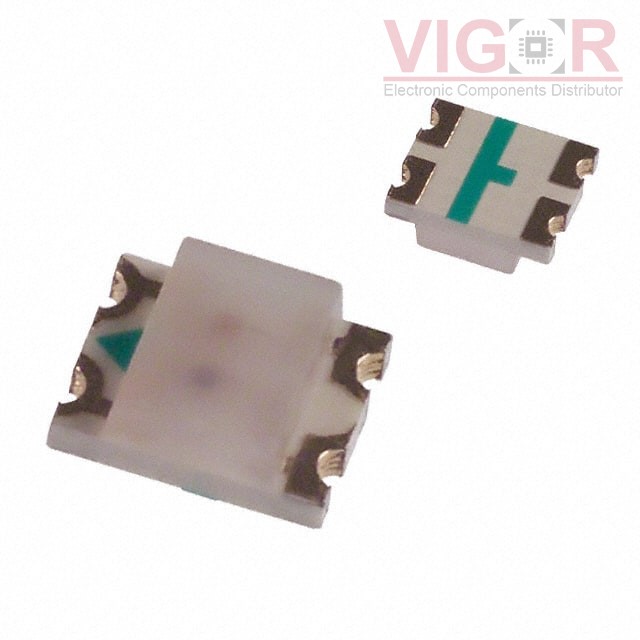

HSMF-C118

Part No :: HSMF-C118

Manufacturer: Broadcom

VIGOR # :: 1672004

Description: LED RGB DIFFUSED CHIP SMD

Catalog: LED Indication - Discrete

DataSheet: HSMF-C118 PDF

Country of origin: -

Date code: -

HSMF-C118 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Red, Green, Blue (RGB)
Configuration:	Common Anode
Lens Color:	White
Lens Transparency:	Diffused
Millicandela Rating:	90mcd Red, 120mcd Green, 40mcd Blue
Lens Style:	Rectangle with Flat Top
Lens Size:	2.00mm x 2.70mm
Voltage - Forward (Vf) (Typ):	1.9V Red, 3.5V Green, 3.5V Blue
Current - Test:	20mA Red, 20mA Green, 20mA Blue
Viewing Angle:	135° Red, 130° Green, 125° Blue
Mounting Type:	Surface Mount
Wavelength - Dominant:	626nm Red, 525nm Green, 470nm Blue
Wavelength - Peak:	637nm Red, 523nm Green, 468nm Blue
Features:	-
Package / Case:	1210 (3225 Metric)
Supplier Device Package:	Chip LED
Size / Dimension:	3.20mm L x 2.70mm W
Height (Max):	1.10mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 35000

Shipped from

HK warehouse

Expected Shipping Date

Jan 16 - Jan 20 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.01~~	~~$2.01~~
3000	~~$0.72~~	~~$2 166.45~~
6000	~~$0.69~~	~~$4 166.28~~

Current price of HSMF-C118 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

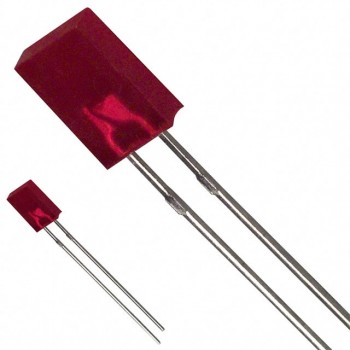

MV57123

LED RED DIFF RECT 2MMX5MM T/H

MT240-G-A

LED GRN DIFFUSED 3.0MM ROUND T/H

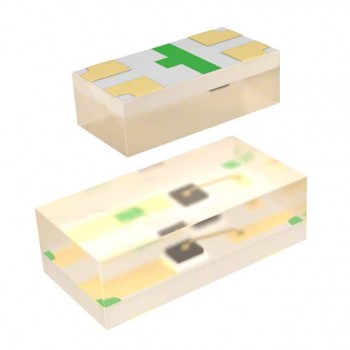

APHB1608LZGKSYKC
