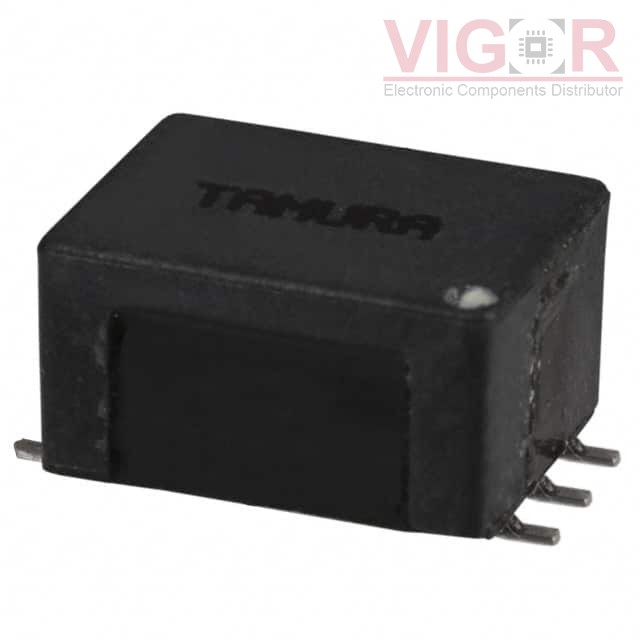

TTC-5036

Part No :: TTC-5036

Manufacturer: Tamura

VIGOR # :: 1982601

Description: TRANSFORMR MODEM 600:287 OHM SMD

Catalog: Audio Transformers

DataSheet: TTC-5036 PDF

Country of origin: -

Date code: -

TTC-5036 Specifications

Type	Description
Series:	TTC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Turns Ratio - Primary:Secondary:	1:1
Impedance - Primary (Ohms):	600
Impedance - Secondary (Ohms):	287
DC Resistance (DCR) - Primary:	175Ohm
DC Resistance (DCR) - Secondary:	175Ohm
Transformer Type:	Data/Voice Coupling
Frequency Range:	200Hz ~ 4kHz
Frequency Response:	±0.2dB
Voltage - Isolation:	1875VRMS @ 1 Second
Insertion Loss:	4dB Max @ 2kHz
Return Loss:	14dB Min @ 200Hz ~ 4kHz
Power Level:	-
Operating Temperature:	-20°C ~ 85°C
Approval Agency:	UL60950, EN60950
Mounting Type:	Surface Mount
Size / Dimension:	0.378" L x 0.492" W (9.60mm x 12.50mm)
Height - Seated (Max):	0.299" (7.60mm)
Termination Style:	Flat Lead

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 3126

Shipped from

HK warehouse

Expected Shipping Date

Jan 09 - Jan 13 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$4.73~~	~~$4.73~~
400	~~$2.69~~	~~$1 075.80~~
800	~~$2.61~~	~~$2 086.40~~
1200	~~$2.53~~	~~$3 031.80~~

Current price of TTC-5036 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

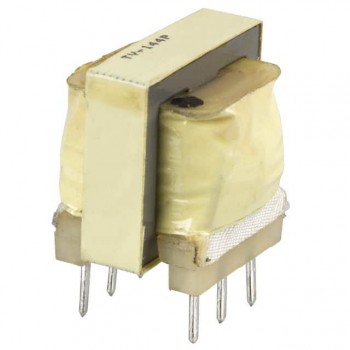

TY-144P

TRANSF 15K AUDIO CTAP/15K CTAP

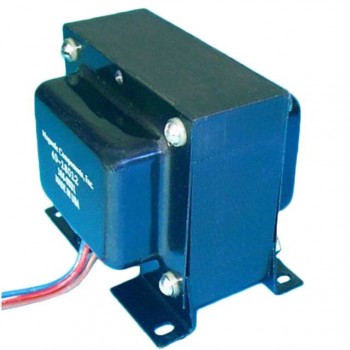

40-18012

OUTPUT TRANSFORMER # 4018012

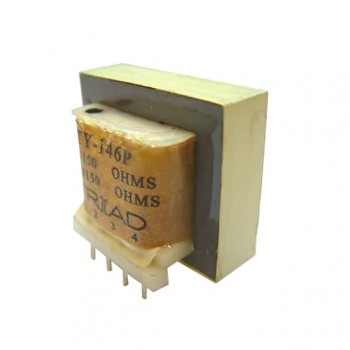

TY-146P-B
