TY-146P-B

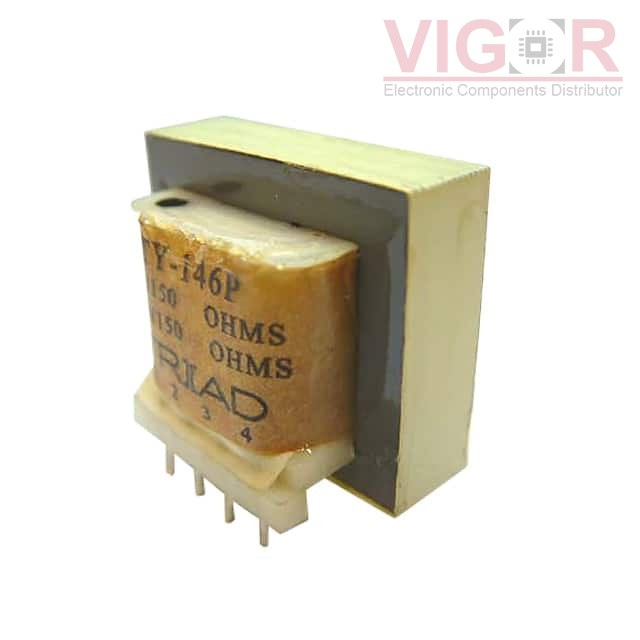

Image is for reference,
please contact us to get the real picture

Part No :: TY-146P-B

Manufacturer: Triad Magnetics

Description: TRANSF 600 AUDIO CT 150/600CT 15

Catalog: Audio Transformers

DataSheet: TY-146P-B PDF

Availability: 0 pieces

Unit Price: ~~$5.16146~~

Current price of TY-146P-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TY-146P-B Specifications

Type	Description
Series:	TY
Package:	Bulk
Part Status:	Active
Turns Ratio - Primary:Secondary:	1:1
Impedance - Primary (Ohms):	600, 150/150
Impedance - Secondary (Ohms):	600, 150/150
DC Resistance (DCR) - Primary:	17Ohm, 19Ohm
DC Resistance (DCR) - Secondary:	14.5Ohm, 22Ohm
Transformer Type:	Data/Voice Coupling
Frequency Range:	200Hz ~ 15kHz
Frequency Response:	±2dB
Voltage - Isolation:	1500V
Insertion Loss:	1.5dB @ 1kHz
Return Loss:	26dB
Power Level:	-
Operating Temperature:	-20°C ~ 85°C
Approval Agency:	-
Mounting Type:	Through Hole
Size / Dimension:	1.375" L x 1.187" W (34.93mm x 30.15mm)
Height - Seated (Max):	1.187" (30.15mm)
Termination Style:	PC Pin

Please confirm the specifications of the products when ordering.
