TY-144P

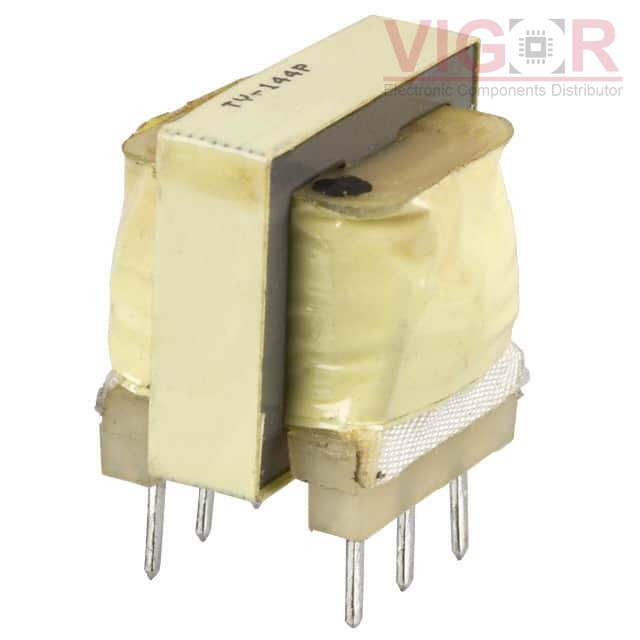

Image is for reference,
please contact us to get the real picture

Part No :: TY-144P

Manufacturer: Triad Magnetics

Description: TRANSF 15K AUDIO CTAP/15K CTAP

Catalog: Audio Transformers

DataSheet: TY-144P PDF

Availability: 458 pieces

Unit Price: ~~$5.82000~~

Current price of TY-144P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TY-144P Specifications

Type	Description
Series:	TY
Package:	Bulk
Part Status:	Active
Turns Ratio - Primary:Secondary:	1:1
Impedance - Primary (Ohms):	15kCT
Impedance - Secondary (Ohms):	15kCT
DC Resistance (DCR) - Primary:	1.18kOhm
DC Resistance (DCR) - Secondary:	1.6kOhm
Transformer Type:	Data/Voice Coupling
Frequency Range:	200Hz ~ 15kHz
Frequency Response:	±2dB
Voltage - Isolation:	1500V
Insertion Loss:	1.5dB
Return Loss:	26dB
Power Level:	100mW
Operating Temperature:	-20°C ~ 85°C
Approval Agency:	-
Mounting Type:	Through Hole
Size / Dimension:	0.812" L x 0.700" W (20.62mm x 17.78mm)
Height - Seated (Max):	0.740" (18.80mm)
Termination Style:	PC Pin
