| Type | Description |
|---|---|
| Series: | - |
| Package: | Tube |
| Part Status: | Active |
| FET Type: | N-Channel |
| Technology: | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss): | 200 V |
| Current - Continuous Drain (Id) @ 25°C: | 17A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On): | 4V, 5V |
| Rds On (Max) @ Id, Vgs: | 180mOhm @ 10A, 5V |
| Vgs(th) (Max) @ Id: | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs: | 66 nC @ 5 V |
| Vgs (Max): | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds: | 1800 pF @ 25 V |
| FET Feature: | - |
| Power Dissipation (Max): | 125W (Tc) |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Through Hole |
| Supplier Device Package: | TO-220AB |
| Package / Case: | TO-220-3 |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 |
Current price of IRL640PBF-BE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
MOSFET N-CH 300V 88A TO264

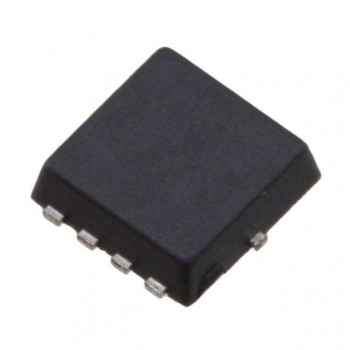

MOSFET N CH 30V 23A 8TSON-ADV
