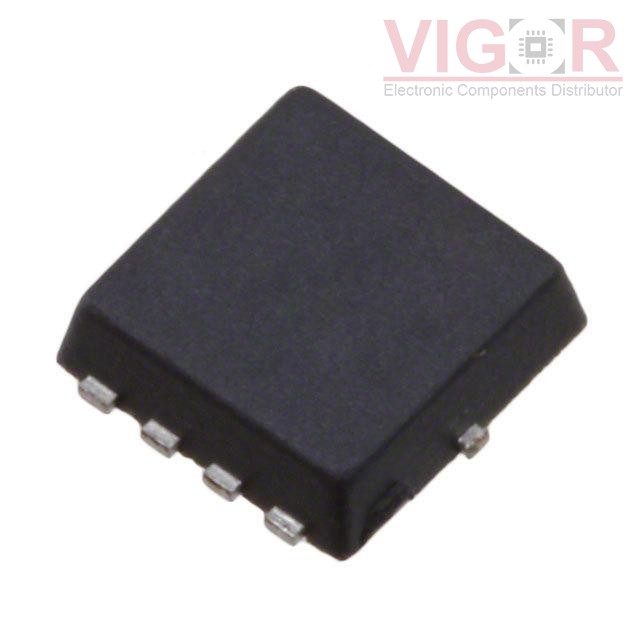

TPN4R203NC,L1Q

Part No :: TPN4R203NC,L1Q

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: MOSFET N CH 30V 23A 8TSON-ADV

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TPN4R203NC,L1Q PDF

Availability: 0 pieces

Current price of TPN4R203NC,L1Q is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TPN4R203NC,L1Q Specifications

Type	Description
Series:	U-MOSVIII
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	23A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	4.2mOhm @ 11.5A, 10V
Vgs(th) (Max) @ Id:	2.3V @ 200µA
Gate Charge (Qg) (Max) @ Vgs:	24 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1370 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	700mW (Ta), 22W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-TSON Advance (3.3x3.3)
Package / Case:	8-PowerVDFN
