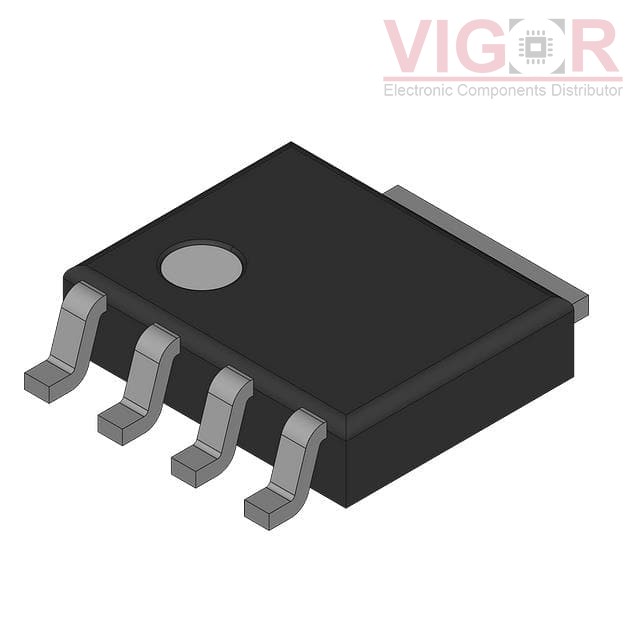

PH8030L,115

Part No :: PH8030L,115

Manufacturer: VIGOR

Description: MOSFET N-CH 30V 76.7A LFPAK56

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: PH8030L,115 PDF

Availability: 0 pieces

Current price of PH8030L,115 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PH8030L,115 Specifications

Type	Description
Series:	TrenchMOS™
Package:	Bulk
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	76.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	5.9mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:	2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	15.2 nC @ 4.5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2.26 pF @ 12 V
FET Feature:	-
Power Dissipation (Max):	62.5W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	LFPAK56, Power-SO8
Package / Case:	SC-100, SOT-669
