CM2722R800R-10

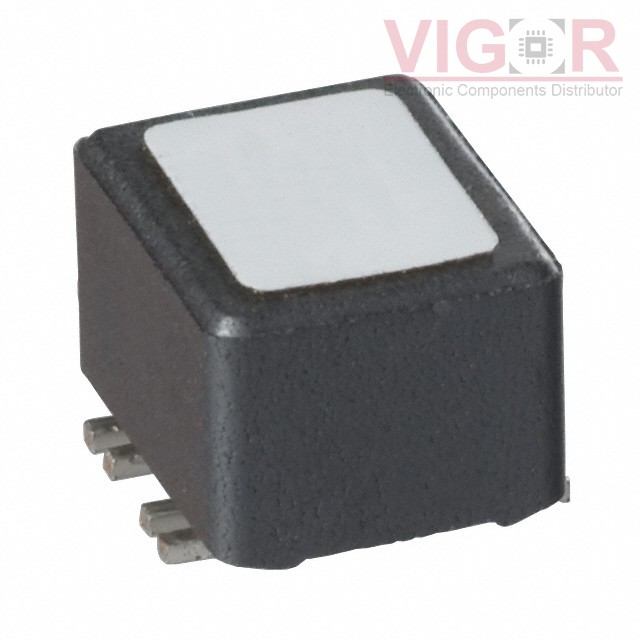

Product image
Product thumb
Part No :

CM2722R800R-10

Manufacturer
Laird - Performance Materials
VIGOR # :

4038488

Description
CMC 5A 4LN 80 OHM SMD
Catalog
Common Mode Chokes
DataSheet
CM2722R800R-10 PDF
Country of origin
-
Date code
-
ads
CM2722R800R-10 Specifications
Type Description
Series:CM
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:Power Line
Number of Lines:4
Impedance @ Frequency:80 Ohms @ 100 MHz
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):5A
DC Resistance (DCR) (Max):20mOhm
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.275" L x 0.265" W (6.99mm x 6.73mm)
Height (Max):0.197" (5.00mm)
Package / Case:Vertical, 8 Flat Lead
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1107
Shipped from
HK warehouse
Expected Shipping Date
Dec 28 - Jan 01 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.60 $2.60
1000 $1.04 $1 038.43
3000 $1.01 $3 019.14
5000 $0.97 $4 871.65
10000 $0.94 $9 422.80

Current price of CM2722R800R-10 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
750311897

750311897

CMC 24MH 240MA 2LN TH

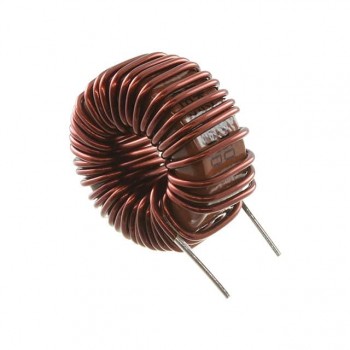

HHBC14-1R2A0120V

HHBC14-1R2A0120V

NMC 107.6UH 8A 0.0299OHM TH

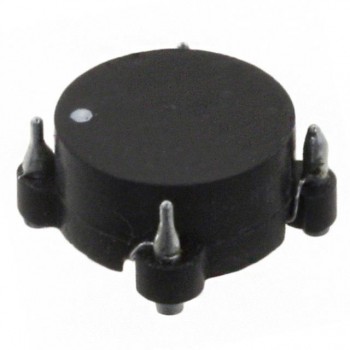

CM6350R-684
