CM4545Z131B-10

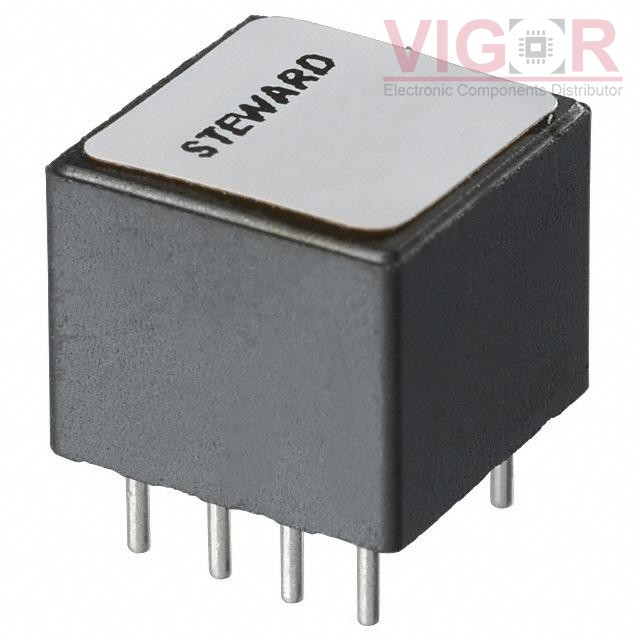

Product image
Product thumb
Part No :

CM4545Z131B-10

Manufacturer
Laird - Performance Materials
VIGOR # :

4039629

Description
CMC 10A 4LN 130 OHM TH
Catalog
Common Mode Chokes
DataSheet
CM4545Z131B-10 PDF
Country of origin
-
Date code
-
ads
CM4545Z131B-10 Specifications
Type Description
Series:CM
Package:Bulk
Part Status:Active
Filter Type:Power Line
Number of Lines:4
Impedance @ Frequency:130 Ohms @ 100 MHz
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):10A
DC Resistance (DCR) (Max):10mOhm
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:0.448" L x 0.448" W (11.38mm x 11.38mm)
Height (Max):0.374" (9.50mm)
Package / Case:Vertical, 8 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 3728
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.6100 $2.61
10 $2.4184 $24.18
100 $1.7090 $170.90
500 $1.3940 $696.98
1000 $1.2758 $1 275.82
2500 $1.2364 $3 091.10

Current price of CM4545Z131B-10 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

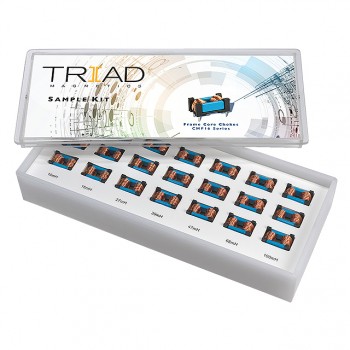

CMF16-104450-B

CMF16-104450-B

CMC 100MH 450MA 2LN TH

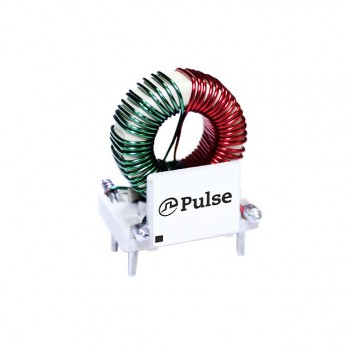

PA3747.705NL
