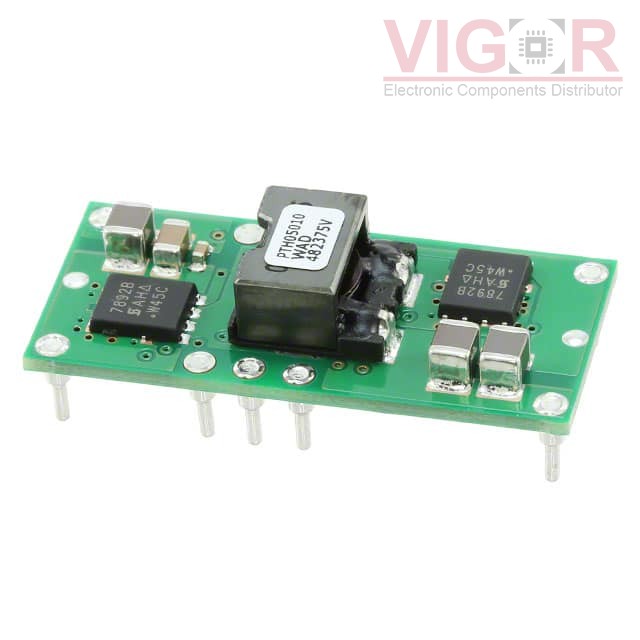

PTH05010WAD

Part No :: PTH05010WAD

Manufacturer: Emerson Embedded Power (Artesyn Embedded Technologies)

VIGOR # :: 4106778

Description: DC DC CONVERTER 0.8-3.6V 54W

Catalog: DC DC Converters

DataSheet: PTH05010WAD PDF

Country of origin: -

Date code: -

PTH05010WAD Specifications

Type	Description
Series:	PTH05010W (54W)
Package:	Tray
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	0.8 ~ 3.6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	15A
Power (Watts):	54 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OTP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	95%
Mounting Type:	Through Hole
Package / Case:	10-DIP Module
Size / Dimension:	1.37" L x 0.62" W x 0.35" H (34.8mm x 15.7mm x 8.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTH05010WAH Match 100%	VIGOR PTH05010W 15 A, 5-V INPUT WIDE-O	PTH05010WAD vs PTH05010WAH
PTH05010YAH Match 100%	VIGOR DC-DC POWER SUPPLY MODULE	PTH05010WAD vs PTH05010YAH
MPDTH05010YAH Match 57%	Murata Power Solutions DC DC CONVERTER 0.55-1.8V 27W	PTH05010WAD vs MPDTH05010YAH
MPDTH05010WAH Match 100%	Murata Power Solutions DC DC CONVERTER 0.8-3.6V 54W	PTH05010WAD vs MPDTH05010WAH
PMG5518TP Match 95%	Flex Power Modules DC DC CONVERTER 0.8-3.3V 50W	PTH05010WAD vs PMG5518TP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 310

Shipped from

HK warehouse

Expected Shipping Date

Aug 25 - Aug 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$19.8900~~	~~$19.89~~
5	~~$19.7365~~	~~$98.68~~
10	~~$19.5841~~	~~$195.84~~
40	~~$19.2782~~	~~$771.13~~
80	~~$18.3600~~	~~$1 468.80~~
120	~~$16.8300~~	~~$2 019.60~~
280	~~$16.5240~~	~~$4 626.73~~
520	~~$16.2792~~	~~$8 465.20~~

Current price of PTH05010WAD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

VI-J10-IZ-B1

DC DC CONVERTER 5V 25W

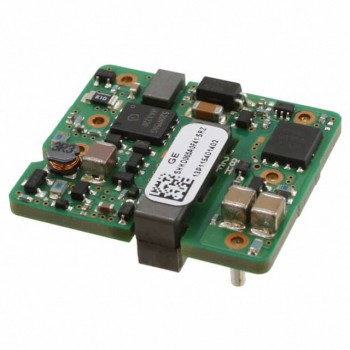

SHHD005A0F41-SRZ

DC DC CONVERTER 3.3V 15W

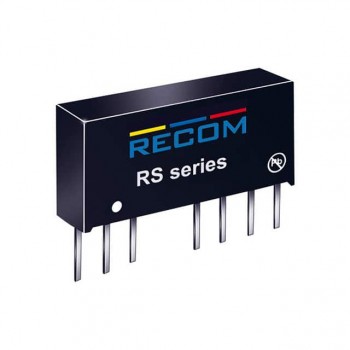

RS-053.3D
